Fully NMEA 2000 Certified

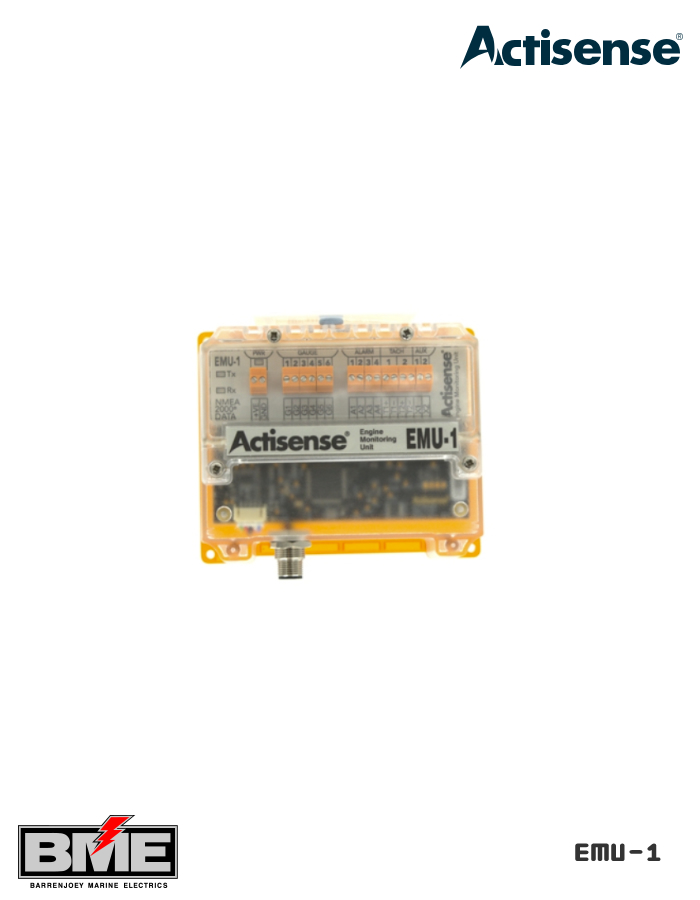

The Actisense EMU-1 has a PC-based configuration tool that allows the settings inside the Actisense EMU-1 to be changed to best suit the engine it is working with, making it a flexible solution for many engine makes and models.
Features
- Enables analogue signals to be converted to NMEA 2000 messages
- Convert signals from up to two engines (that share a common ground) with a single EMU-1
- 6 gauge / parameter inputs
- 4 alarm inputs
- 2 additional auxiliary inputs
- 2 Tacho inputs
- Customised IP65 case
- Diagnostic LED’s
- Wide power compatibility of 9 to 35 Vdc
Benefits
- No need to change an existing engine
- Easy installation
- Easy to configure to suit the connected engine
- Connect signals from fluid level gauges (that share a common ground with the engine) to NMEA 2000®
- Optional DIN rail mounting kit available
- Total engine hours are logged by the monitoring of engine Tach (RPM) input
Specifications
Power Supply | |
| Supply Voltage | 9 to 35V DC |
| Supply Current | Typically < 25mA @ 12V DC |
| Supply Protection | Continuous reverse polarity protection and load dump protection (meets SAE J1113) |
| Supply Connector | Pluggable 2-way screw terminal, 3.5mm pitch |
| Supply Voltage (NMEA 2000 Port) | 9 to 29V DC |
| Supply Current (NMEA 2000 Port) | < 20mA @ 12V DC from NMEA 2000 bus |
| Load Equivalent Number (LEN) | 1 |
| Supply Protection (NMEA 2000 Port) | Continuous reverse polarity protection and overvoltage protection to 40V |
NMEA 2000 Port – In/Out | |
| Compatibility | Fully NMEA 2000 certified |
| Galvanic Isolation | 2500V input to ground, 1500V output to ground using ISO-Drive |
| Speed / Baud Rate | 250kbps |
| NMEA 2000 Connector | M12 male (A coded) connector |
Gauge Inputs | |
| Voltage Range | 0 to 35V DC |
| Input Impedance | > 50kΩ |
| Sender Feed | 0, 4 or 18mA |
| Accuracy | <= 2% |
| Input Connector | Pluggable 6-way screw terminal, 3.5mm pitch |
| Input Protection | Overvoltage protection to ±40V |
Alarm Inputs | |
| Voltage Range | 0 to 37V DC |
| Input Impedance | > 50kΩ |
| Threshold Voltage | Configurable, default is 5V |
| Alarm Polarity | Configurable, default is alarm on low input |
| Accuracy | <= 2% |
| Input Connector | Pluggable 4-way screw terminal, 3.5mm pitch |
| Input Protection | Overvoltage protection to ±40V |
Tacho Inputs | |
| Voltage Range | ±3 to ±60V |
| Input Impedance | > 100kΩ to ground |
| Input Pulse Range | 4 to 50,000Hz |
| Accuracy | <= 1% |
| Sender Compatibility | Ignition coil, alternator (“W”, “R” or “AC”) terminal, hall effect, VR or inductive sender |
| Threshold | Automatically adjusts to signal level |
| Input Connector | Pluggable 4-way screw terminal, 3.5mm pitch |
| Input Protection | Can withstand an ignition pulse to ±500V |
Engine Log | |
| Engine Hours | 2 separate engine hour logs internally connected to the tacho Inputs. Hours are logged when RPM is present, stored in non-volatile memory |
Mechanical | |
| Housing Material | Polycarbonate |
| Protective Lid Material | Polycarbonate |
| Sealing Materials | Expanded silicone foam gasket, closed cell polyurethane splash guard and ePTFE waterproof vent |
| Dimensions | 127mm (L) x 112mm (W) x 48mm (H) |
| Weight | 250g |
| Mounting | 4 x 3.5mm lugs to allow panel mount with self tapping s/s screws (included), optional DIN Rail mount available on request |
Approvals and Certifications | |
| Fully NMEA 2000 Certified | |
| EMC | EN 60945 (sections 9 & 10) |
| Environmental Protection | IP66 (PCB housing) |
| Operating Temperature | -20°C to +55°C |
| Storage Temperature | -30°C to +70°C |
| Recommended Humidity | 0 – 93% RH |
| Guarantee | 3 years |
Download EMU-1 Manual
Click here to download Actisense EMU-1 EngineMonitoring Unit Manual
