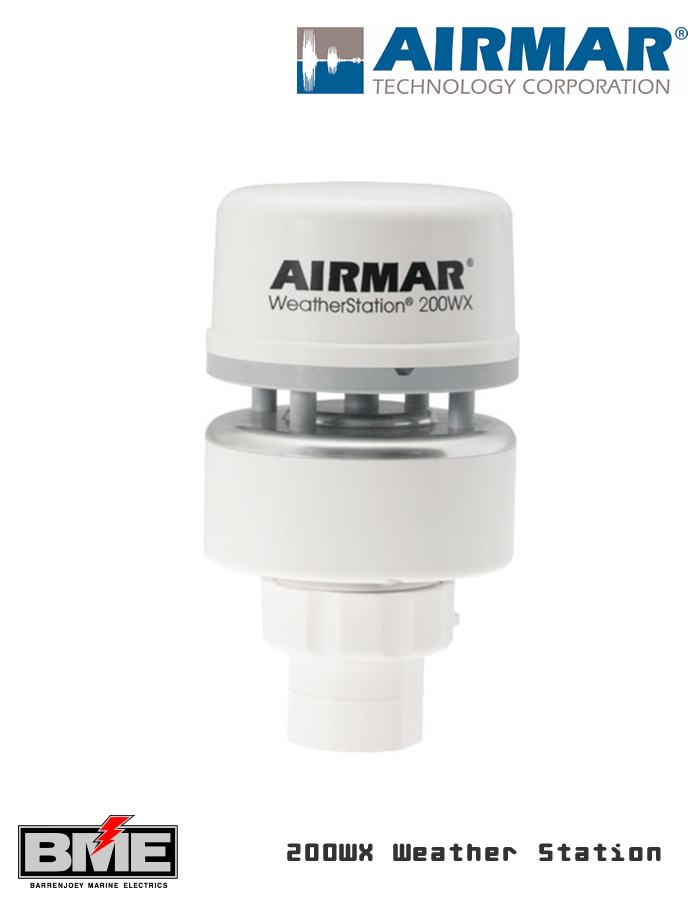

Knowing the dynamic true wind speed and direction is important and often mission-critical. The Airmar 200WX Wind & Weather Station Instrument calculates the dynamic true wind speed and direction based upon the apparent wind (the wind you would feel on your hand if you held it out while moving), speed of the vehicle, and vehicle heading. Its internal 10 Hz GPS and three-axis electronic compass provide heading, position, speed-over-ground, and course-over-ground functionality that is necessary for dynamic true wind-data processing on a moving vehicle.
The 3D compass with dynamic stabilization provided by the three-axis rate gyro enhances the rate-of-turn data. The patented Airmar 200WX Wind & Weather Station Instrument maintains dynamic compass performance in hilly and mountainous terrain—common in military situations.
Features
- Ultrasonic measurement of apparent and Dynamic true wind speed and direction
- Barometric pressure
- Air and wind chill temperature
- Relative humidity (field serviceable option)
- Calculated dew point and heat index
- GPS position, speed over ground, and course over ground
- Three-axis, solid-state compass with dynamic stabilization
- Three-axis rate gyro supplies rate-of–turn data
- Three-axis accelerometer for best-in-class pitch and roll information
- Housing IPX6 rated for water-ingress protection
- Data output via a single cable (various lengths available)
- NMEA 0183/ASCII serial data protocol over RS-232 interface
- NMEA 2000 protocol over CAN
Options
- Relative humidity module
- Enables dew-point and heat-index calculations
- Field serviceable
- WeatherStation housing rated IPX4 when RH module is installed
Specifications
Download Airmar Manual
Click here to download Airmar WX Weather Station Instrument Manual
