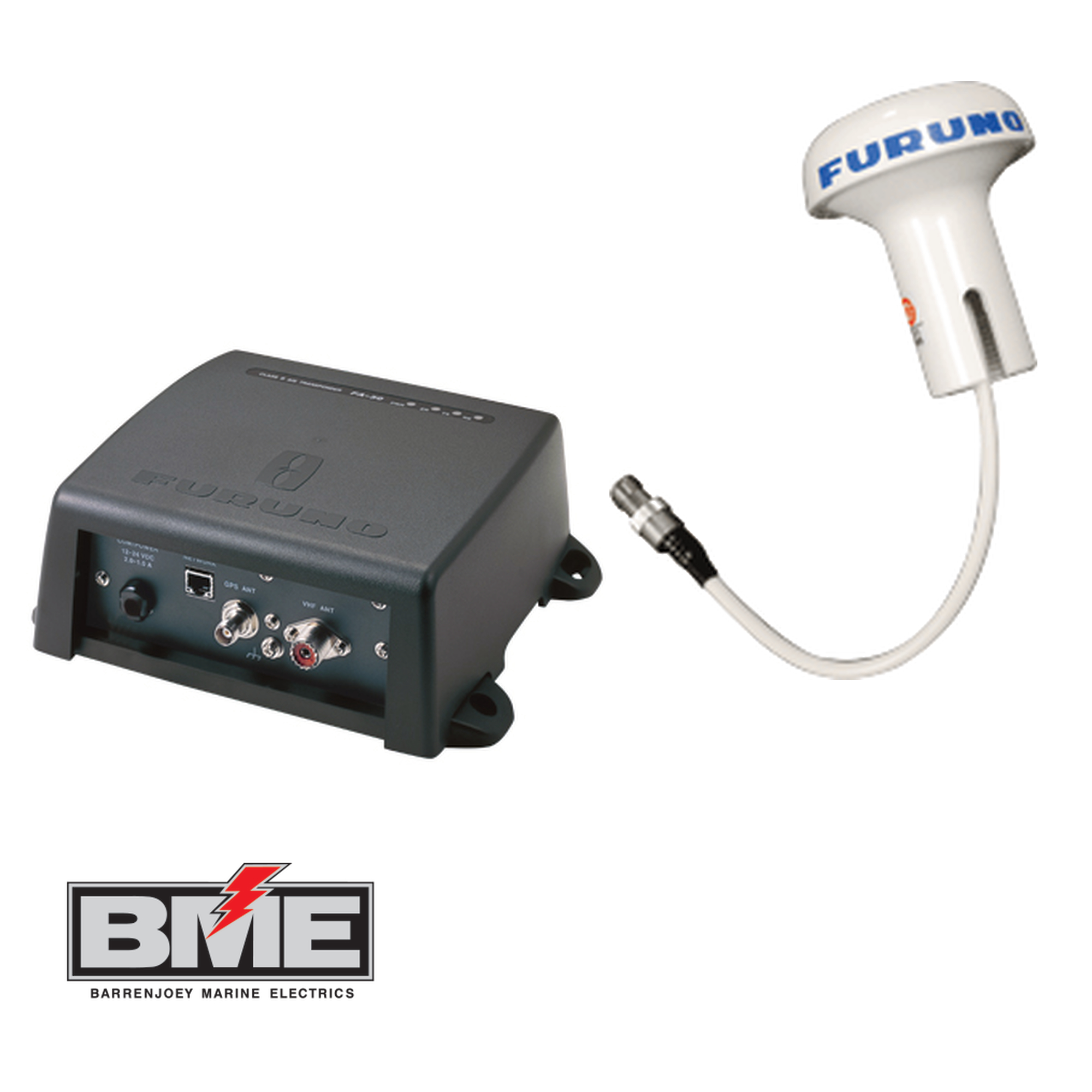

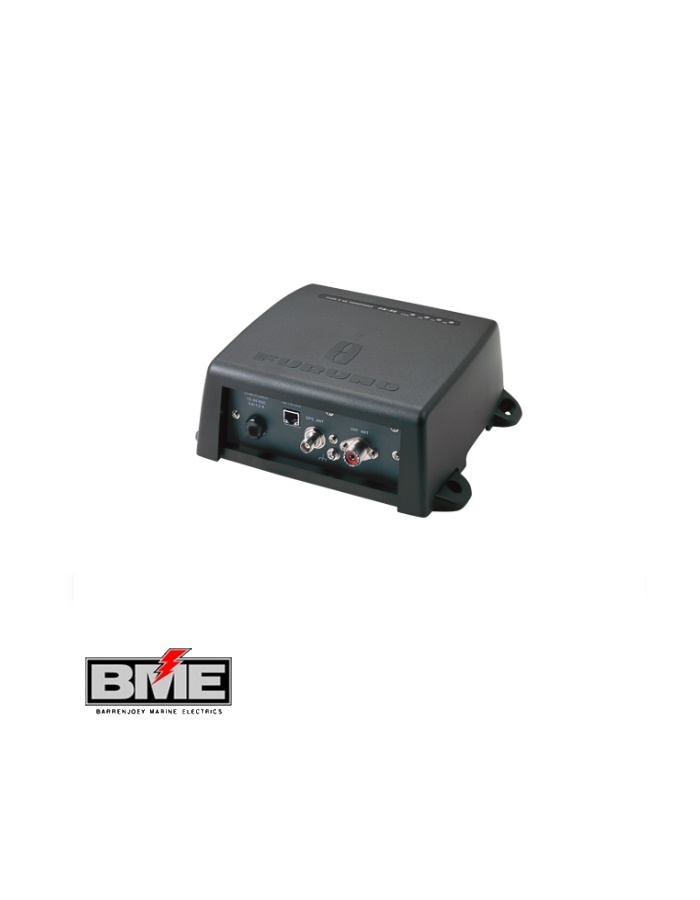

Furuno FA-40 ‘Class B’ Black Box AIS Transponder

FA-40 Dual Channel Black Box AIS Receiver (without Antenna)

PART ID: IMD040100AA

FURUNO’s FA-40 class-B AIS transponder receives navigation data from AIS-equipped vessels nearby that can be utilized to aid in safe navigation. Also, the FA-50 transmits own ship’s information to the vessels around, which also aids in collision avoidance.

Features

• Fully satisfies the technical standards for Class-B AIS, IEC 62287-1
• Receives both Class-A and Class-B AIS information
• Enhances safe navigation by exchanging critical navigation information from AIS-equipped vessels nearby
• Greatly improves the level of the situational awareness even in fog, darkness or congested waterways
• Outputs data to NavNet TZtouch2 and TZtouch2 BB, TZtouch, 3D through Ethernet
• Flexible integration with various AIS compatible radar and chart plotters

Furuno FA 40 AIS Transponder Specifications

• TX/RX Frequency: 156.025 MHz to 162.025 MHz
• Channel Spacing: 25 kHz
• Power Supply: 12-24 VDC, 2.0-1.0 A
• Size: 90 (H) x 255 (W) x 219 (D)
• Weight: 1.7 kg
