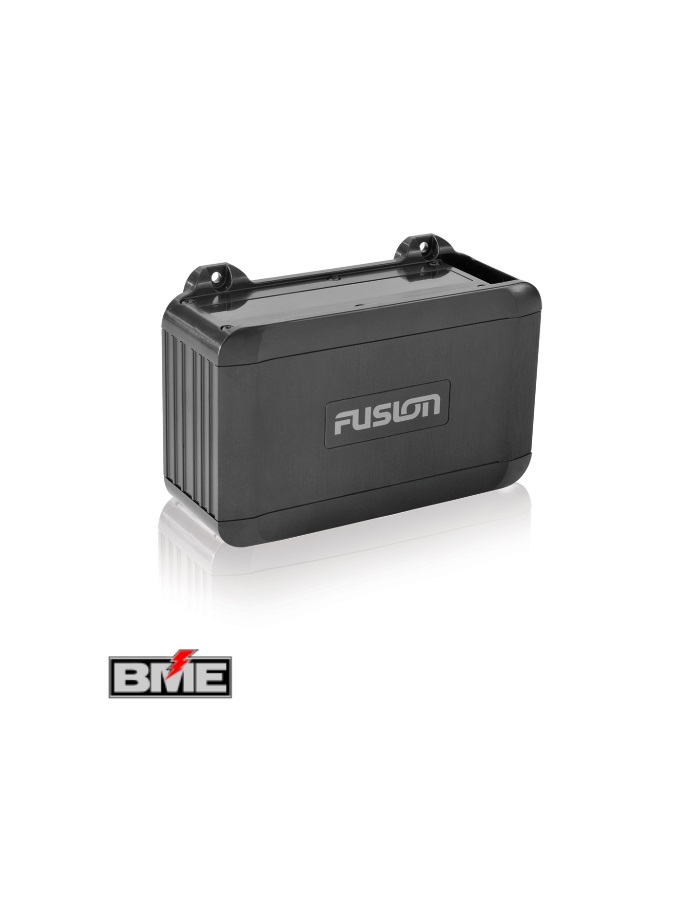

Fusion BB100 Black Box with Bluetooth Wired Remote Introducing the MS-BB100, a compact black box entertainment solution that incorporates the marine industry supported Fusion-Link protocol and Fusion’s proven marine engineering skillset to deliver a boat load of tunes.
The MS-BB100 includes an easy touch Bluetooth embedded IPX7 water resistant remote for quick audio adjustments. Supplied with a 2m connection cable, the wired remote is ideally shaped for hassle free installation onto a dash or boat console.
Engineered for either a flush or flat mount installation while the MS-BB100 is tucked away out of sight, saving precious space at the helm, you can choose the finish to suit your vessel. Features Multi-Zone Technology – Two independent audio zones are available, each with localized menu controls. Multi-Zone Technology includes functions for naming and linking zones, disabling unused zones and setting volume limits. Note: Line Out/Sub Out require additional amplification.
Easy mount chassis – Simply secure out of sight, plug and play for effortless entertainment.
DAB+ ready – Connect the optional FUSION DAB+ module (sold separately) to experience high quality digital radio and an expanding assortment of stations (Only accessible where DAB+ is supported). The MS-BB100 and FUSION quick touch wired remote control offers independent control of your audio entertainment. With two independent audio zones available, each with advanced localized menu controls including zone naming, you can easily customize your listening experience in each zone.
Fusion BB100 Black Box with Bluetooth Wired Remote Specifications
| Tuner | AM/FM with RDS (via connected MFD, Fusion NMEA 2000 remote or Fusion-Link app where available) |
|---|---|
| Tuner Region | USA, Australasia, Europe and Japan |
| Peak Power | 200W Max (@ 4 Ω) |
| Amplifier | Class-AB: 4 x 26 W rms @ 14.4Vdc input, 4 Ω, ≤ 10% THD+N |
| Audio Zones | 2 on-board amplified zones |
| Nameable Zones | Up to 10 characters per zone |
| Line Out | 1 x L+R per zone (requires amplification) |
| Subwoofer Out | 1 x Sub Out Linked to Zone 1 (requires amplification) |
| Auxiliary Inputs | 1 x Stereo RCA Input (AUX) |
| iPod/iPhone | Made for iPod and iPhone – supports IAP 2 protocol only |
| Android Open Accessory (AOA) | Android support is limited to devices which support AOA protocol. |
| DAB+ Ready | MS-DAB100A module (sold separately) is required for DAB support, only available where DAB and DAB+ is broadcast |
| Garmin watch app via ANT | VivoActive/HR, Fenix 3/HR, Fenix 5/S/X, Quatix 3, D2 Bravo/Titanium, Fenix Chronos, Forerunner 935 – Fusion-Link app via Garmin Connect IQ |
| Fusion-Link Wireless | Bluetooth remote control is available with the Fusion-Link remote control app, available for free download from the Apple® App Store or Google Play™ |
| Fusion-Link Wired | Compatible with a Fusion NMEA 2000 wired remote control and any supported Fusion-Link MFD. A powered network is required for NRX Series remote support |
| NMEA 2000 Certified | LEN:1 |
| Bluetooth | A2DP Bluetooth Audio Streaming with AVRCP support |
| USB | 1 x USB connector at the rear of the unit, supports 1 amp charging |
| Audio Format USB | MP3 |
| Water Resistance | IPx7 water resistant remote from the front panel when correctly mounted. Black Box is rated IPx2 when correctly mounted. |
| Chassis | Aluminium chassis with plastic end caps |
