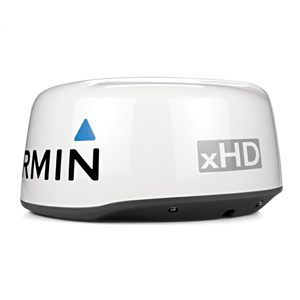

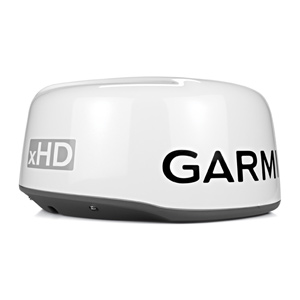

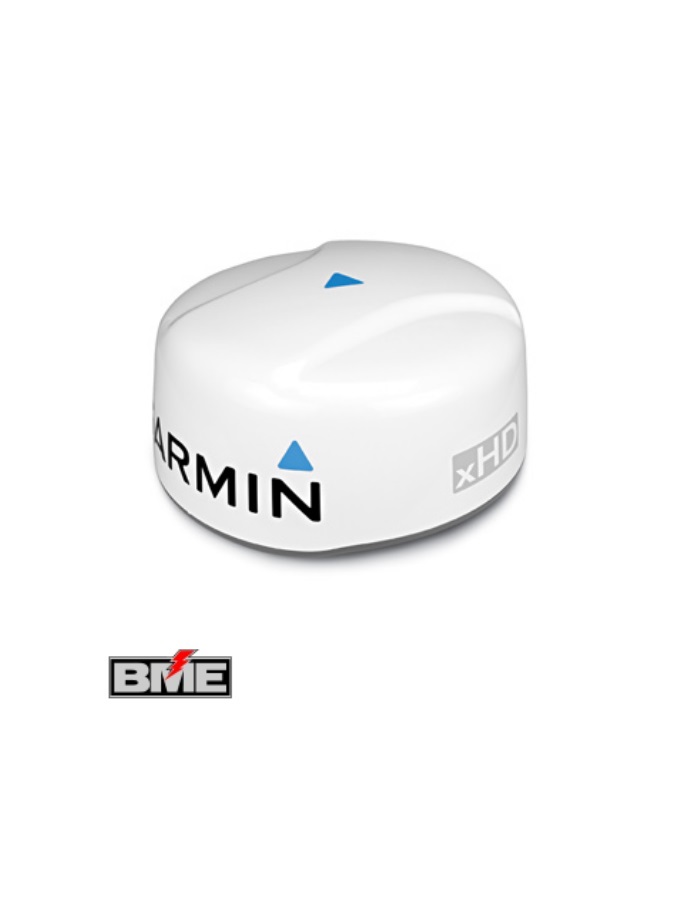

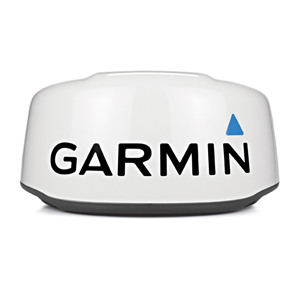

Garmin Radome xHD Series The next-generation Garmin, 4 kW high-definition GMR xHD dome radar pairs ease of use with advanced open-array features. Its intuitive operation makes modes and settings simple to understand so you can enjoy great performance without a lot of technical know-how.
The GMR xHD delivers higher resolution than our previous generation dome radars. New Dynamic Auto Gain and Dynamic Sea Filter continually adjust to your surroundings, providing optimal performance in varying conditions. Choose from multiple levels of aggressiveness or use manual gain adjustment.
Dual range operation allows fully independent split-screen display of far and close radar views in full 8-bit colour (select chartplotters); range of 48 nm. Features
- 4 kW high-definition dome radar
- Pairs ease of use with advanced open-array features
- 48 or 24 RPM rotation speeds for fast screen refreshes, auto adjusts as needed based on range
- 48 Mile max range setting
- No complex user settings, easy to install and start using
Garmin Radome xHD Series Specifications
Radome 18 Inch |
|
| Physical dimensions | 50.8 cm diameter, 24.8 cm high |
|---|---|
| Weight | 7.7 kg |
| Water rating | IPX7 |
| Power consumption | 30 W typical; 48 W max |
| Antenna length | 17″” (43.18 cm) |
| Rotation speed (RPM) | 24/48 rpm (dual rotation) |
| Transmit power | 4 kW |
| Power input | 11-35 V DC |
| Beam width | 5.2° horizontal, 25° vertical |
| Maximum range | 48 nm |
| Minimum range | 20 meters |
| Radar type | Radome |
[vc_column_inner width=””1/2
Radome 24 Inch |
|
| Physical dimensions | 64.5 cm diameter, 24.9 cm high |
|---|---|
| Weight | 9.5 kg |
| Water rating | IPX7 |
| Power consumption | 30 W typical, 48 W max |
| Antenna length | 23″” (58.42 cm) |
| Rotation speed (RPM) | 24/48 rpm (dual rotation) |
| Transmit power | 4 kW |
| Power input | 11-35 V DC |
| Beam width | 3.7° horizontal, 25° vertical |
| Maximum range | 48 nm |
| Minimum range | 20 meters |
| Radar type | Radome |
| High definition (outstanding target separation with less screen clutter) | Yes |
|---|---|
| MARPA target tracking (collision avoidance) | Yes (Requires Heading Sensor, Sold Separately) |
| Guard zone alarm | Yes |
| Color | 8 bit |
| Radar overlay support | Yes |
| Dual range support | Yes |
| Timed Transmit | Yes |
| No Transmit Zone |
