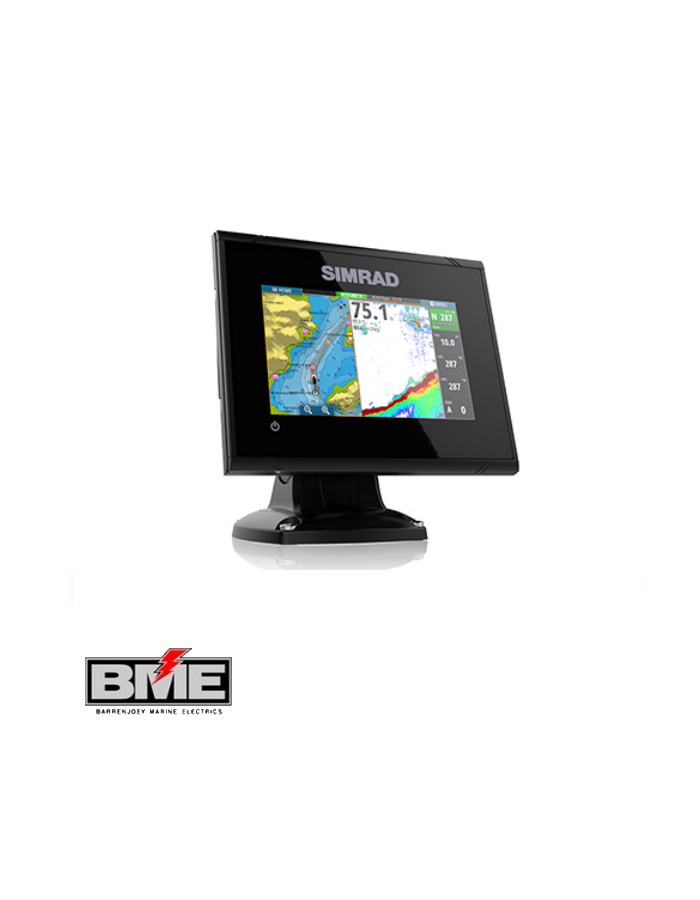

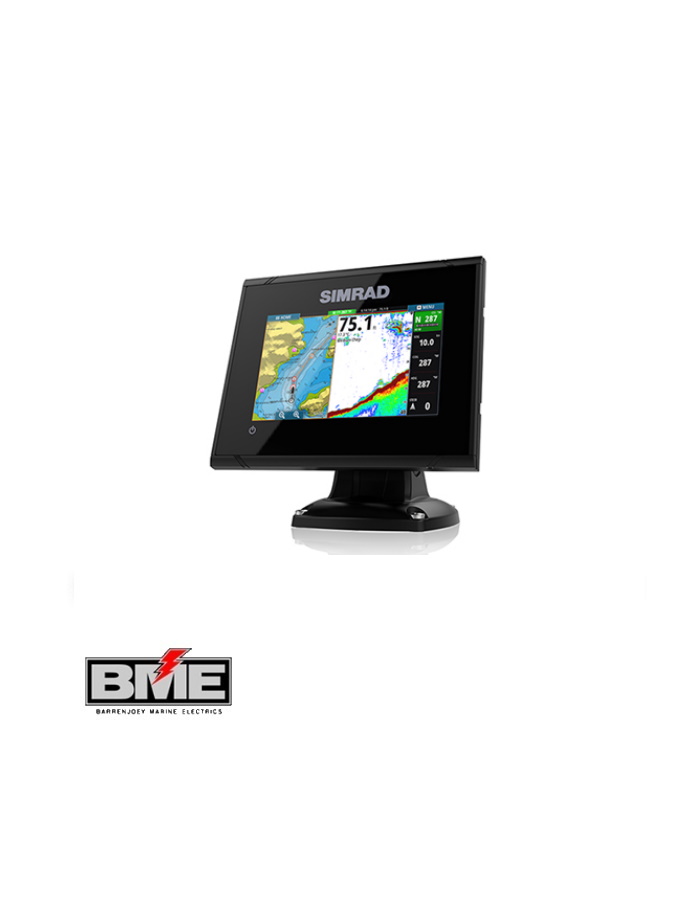

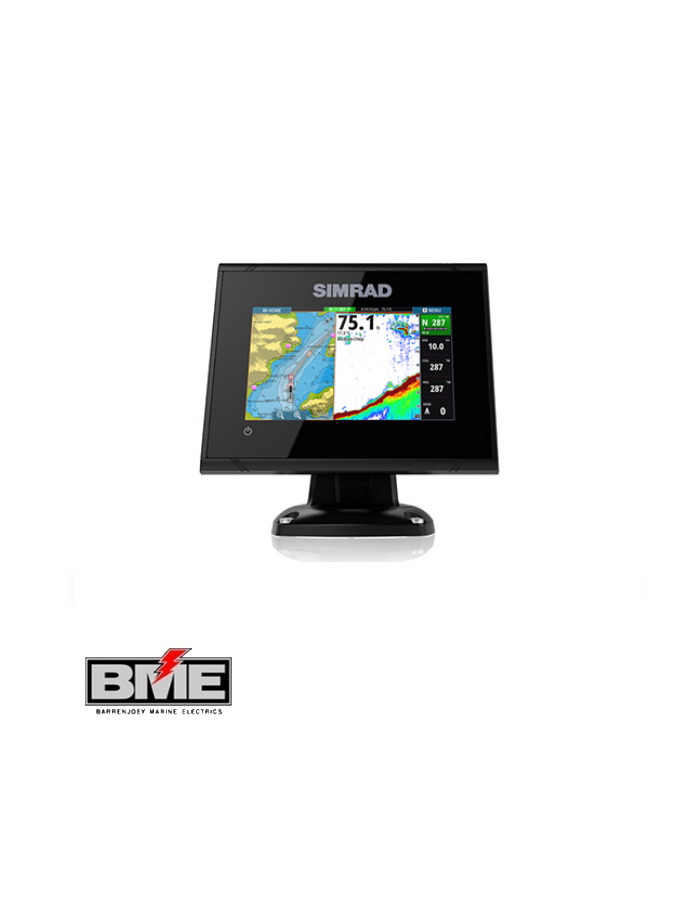

Behind its super-bright touchscreen lies a chartplotter with built-in GPS receiver, and Wi-Fi access to the latest charts and updates. Control your onboard sound system, monitor engine data and more over NMEA 2000, and choose from an array of built-in sonar technologies: cruise with confidence using ForwardScan forward-looking sonar, or find fish like a pro with Broadband Sounder CHIRP sonar plus StructureScan HD SideScan and DownScan Imaging.
Features
- Easy to use multi-touch interface
- Full-featured chartplotter with widest available cartography support (Insight, Navionics, CMAP)
- Includes worldwide basemap
- Plan smarter with TripIntel™ technology
- Support for Navionics Autorouting and Jeppesen Easy Routing
- 5-inch flush or bracket mount display
- Widescreen with bright LED backlight
- High-speed 10 Hz GPS receiver
- Built-in GoFree™ Wi-Fi
- NMEA 2000 compatible
Simrad GO5 XSE Chatplotter Specifications
- Display Type: WVGA Colour TFT LCD
- Display Size: 5-inch Widescreen
- Display Resolution [pixels x pixels]: 800 x 480
- Backlighting Levels: LED / 1200 nits
- GPS Antenna Type: 10 Hz built-in GPS
- Operating Temperature: -15 °C to +55 °C (5 °F to 131 °F)
- Waterproof Standard/rating: IPX7
- Product Width: 152 mm / 5.98 in
- Product Depth: 57.9 mm / 2.28 in
- Product Height: 120 mm / 4.72 in
- Product Weight: 0.54 kg / 1.18 lb
- Power Consumption: 900 mA @ 13.5 V
- Power Supply (Supply Voltage): 12 V DC
