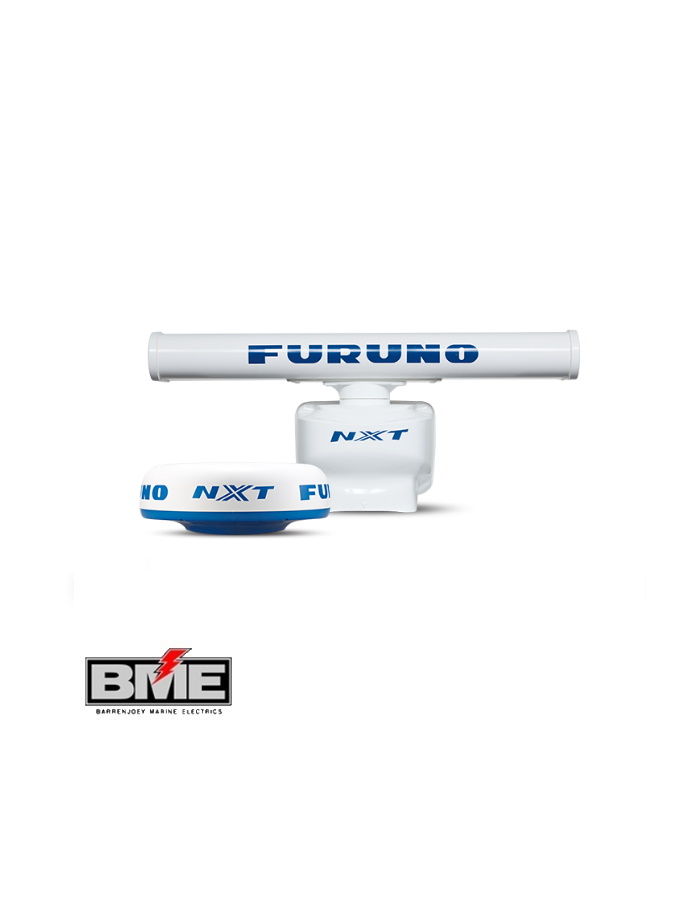

The NXT series features Target Analyzer, Fast Target Tracking and Auto Target Acquire function to offer optimal detection and sensitivity of hazardous objects. Combined with RezBoost technology, the DRS6A-NXT and DRS4D-NXT have no equal in spotting and tracking targets moving around your vessel efficiently with a high resolution.
PART ID: IMD03456000
Features
- Solid-State pulse compression Doppler Radar
- Revolutionary Target Analyzer function instantly identifies hazardous targets
- Fast Target Tracking and Auto Target Acquire function, up to 100 targets
- RezBoost beam sharpening to increase the resolution
- Bird Mode to find the best fishing grounds by tracking birds
- Simple installation, no need to open the radome (DRS4D-NXT only), external PSU is not required
- New smart-connector cable for retrofitting existing DRS cable installations

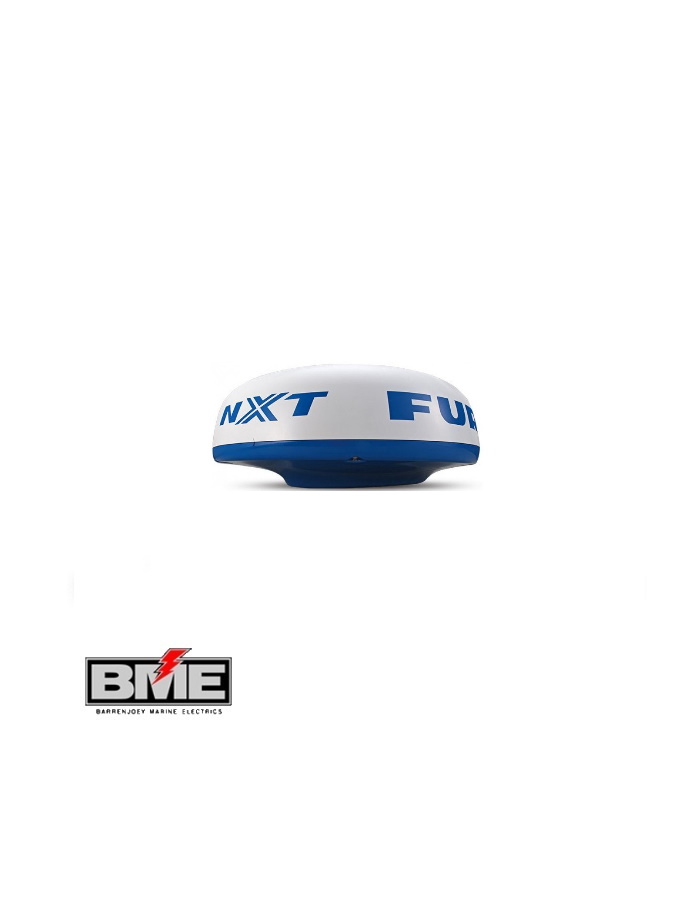

Furuno DRS4D NXT Radar Sensor Specifications
- Type: Radome (24″)
- Vertical beam width: 25°
- Rezboost Effective Horizontal Beam: 3.9° (-3dB) / 2.0°
- Antenna rotation speed: 24/36/48 rpm range coupled or 24 rpm fixed
- Output power: 25 W
- Minimum range: 20 m
- Range resolution: 20 m
- Range accuracy: 1% of range in use or 10 m, whichever is the greater
- Bearing accuracy: ±1°
- Number of ports: LAN: 1 port, Ethernet, 100Base-TX, RJ45
- Data sentences: IEC61162-1/2
- Input: GGA, GLL, GNS, HDG, HDM, HDT, RMA, RMC, THS, VHW, VTG
- Power Supply: 12-24 VDC: 2.5-1.3 A
