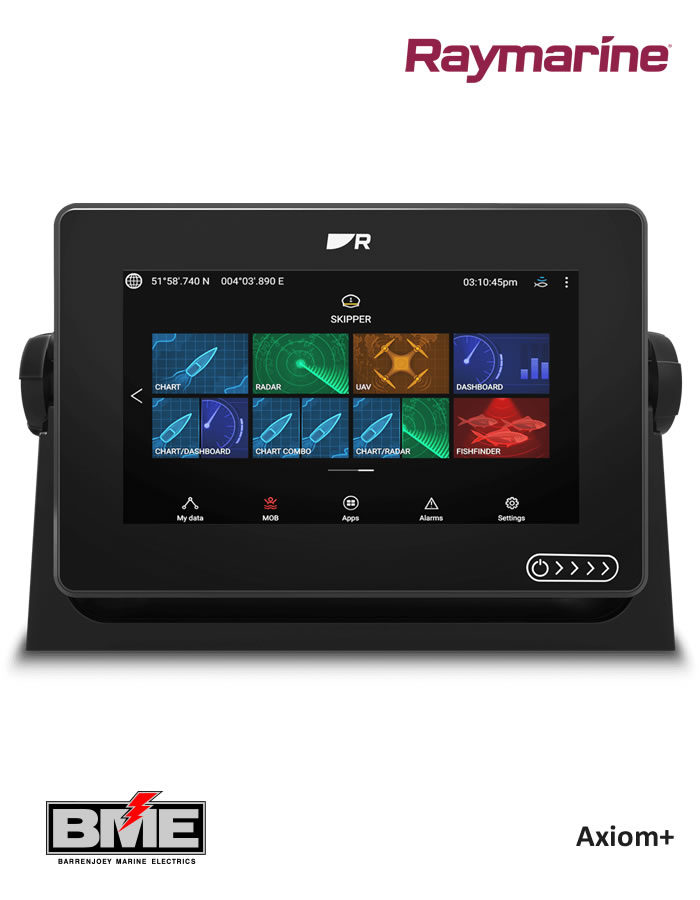

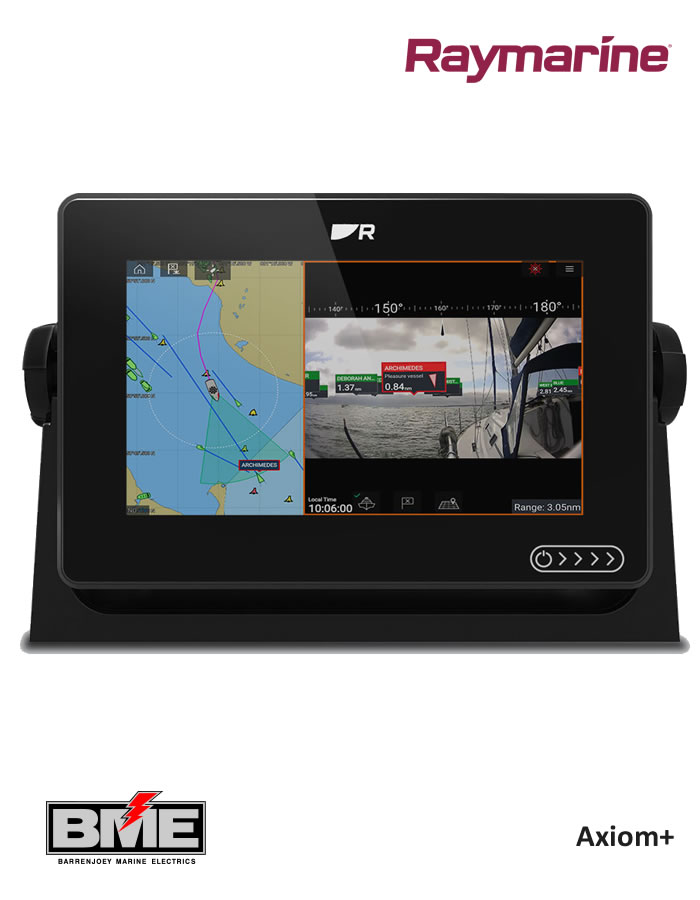

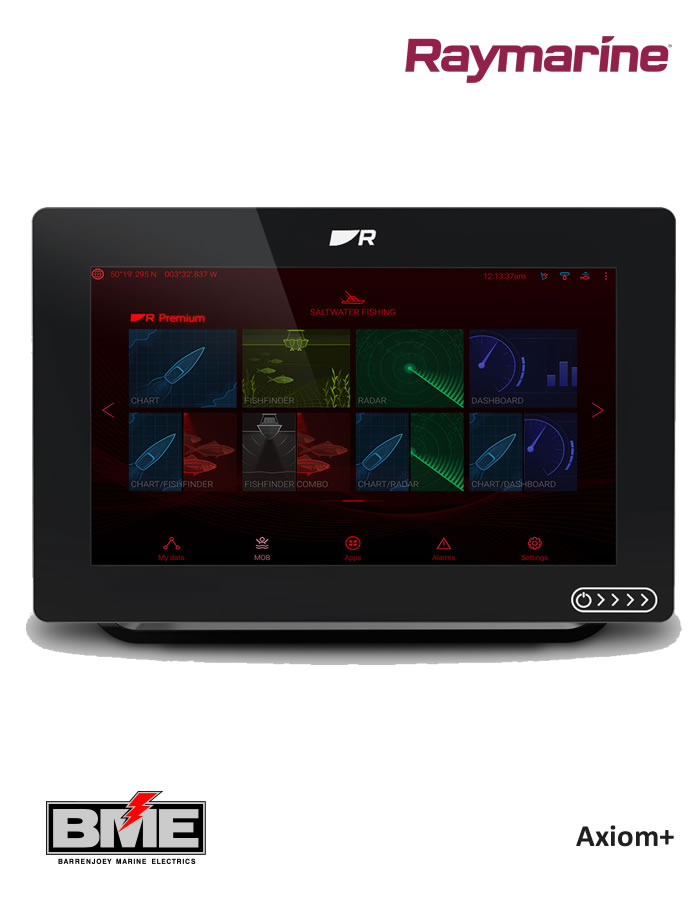

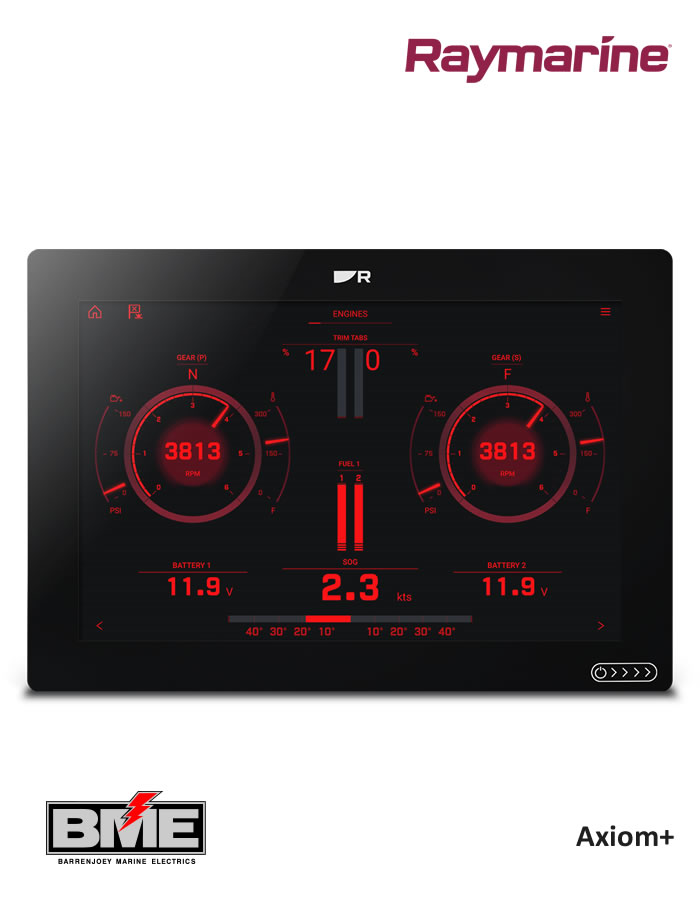

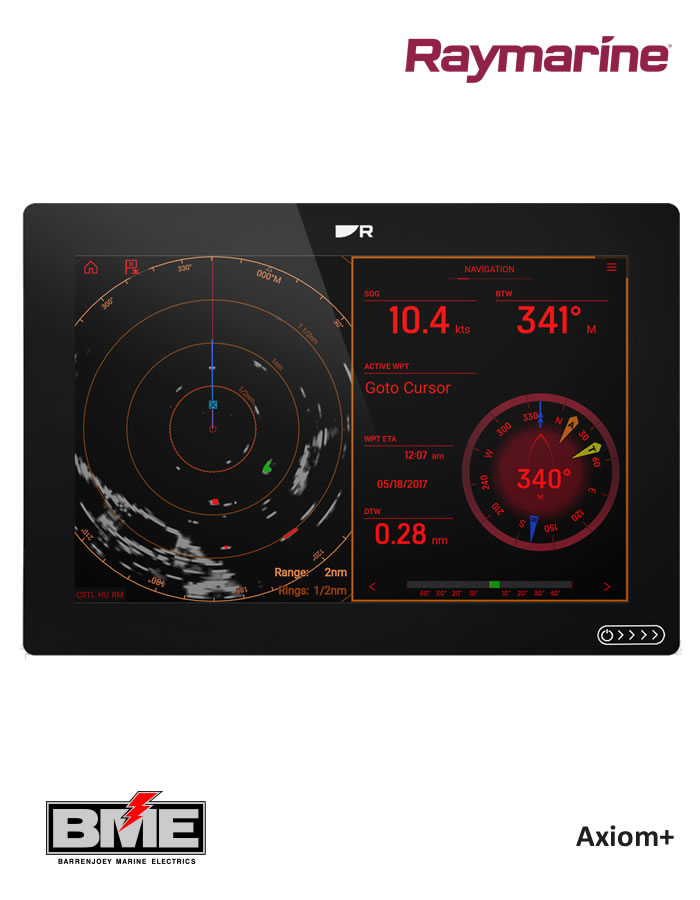

The performance-tuned Raymarine Axiom®+ is a new generation of award-winning Raymarine multifunction displays. Optimised for speed, Raymarine Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision™ 3D sonar.
New, higher resolution IPS displays deliver 25 percent more brightness and new day/night colour palettes offer enhanced visibility in any lighting condition. Raymarine Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.
Raymarine Axiom+ Specifications
MODEL | Axiom+ 7 | Axiom+ 9 | Axiom+ 12 |
GENERAL
| Display Size | 7.0 inch High Density IPS | 9.0 inch High Density IPS | 12.1 inch High Density IPS |
| Display Resolution | 1024 x 600 (WSVGA) | 1280 x 720 (WXGA) | 1280 x 800 (WXGA) |
| Display Type | Multitouch with HydroTough™ rugged hydrophobic coating | ||
| Brightness | 1,500 nits | 1,500 nits | 1,800 nits |
| Viewing Angle | 85° Top, Bottom, Left, Right | 85° Top, Bottom, Left, Right | 88° Top, Bottom, Left, Right |
| Dimensions W x H x D | 210 x 142 x 77mm 7.92 x 5.24 x 3.0in (Excluding trunnion and cables) | 244 x 158 x 77mm 9.65 x 6.22 x 3.0in (Excluding trunnion and cables) | 314 x 217 x 77mm 12.36 x 8.54 x 3.0in (Excluding trunnion and cables) |
| Weight | 3 lbs | 5 lbs | 6.5 lbs |
| Mounting Options | Surface, Flush, Trunnion, (Front installation bracket available) | ||
| Waterproof Rating | IPX6 / IPX7 | ||
| Operating Temperature Range | -25°C to +55°C (-13°F to +131°F) | ||
| Storage Temperature Range | -30°C to +70°C (-22°F to +158°F) | ||
POWER
| Voltage | 12V DC (8V to 16V DC) | ||
| Power Consumption (Full brightness) | 7.34 Watts. RV Sonar version 9.84 Watts | 8.95 Watts. RV Sonar version 11.98 Watts | 15.48 Watts. RV Sonar version 19.96 Watts |
SENSORS
| GNSS / GPS | Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou* – 10Hz 28 Channel *Future software update required | ||
| Sonar Type (Built-in) | RV Version equipped with High CHIRP, DownVision, SideVision and RealVision 3D | ||
| Sonar Connections | 25pin RealVision™ type connector | ||
| Sonar Depth | High CHIRP Sonar = 900 feet (274m) | DownVision™ = 600 feet (183m) | SideVision™ = 300 feet (91m) | RealVision™ 3D = 300 feet (91m) | ||
| External Sonar Option | Yes – CP100, CP200, CP370, CP470, CP570, RVX1000 via RayNet | ||
| Radar | Yes – Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars | ||
| AIS | Yes – NMEA2000 compatible | ||
| Autopilot Control | Yes – Evolution Autopilot | ||
| Thermal Night Vision | Yes FLIR AX8, M232, M300 Series, M400, M500 | ||
| Video / Camera | Compatible with CAM210IP, CAM220IP (Up to 10 IP network cameras) | ||
| Weather | GRIB View – Free GRIB viewer and Theyr Ltd Subscription | SiriusXM – N. America Only | ||
| Audio | NMEA2000 / Bluetooth speaker controls / Optional SiriusXM Audio | ||
| Digital Switching | Yes – Empirbus & C-Zone compatible | ||
| Remote Control | Yes Optional RMK-10 (A80438) | ||
NETWORKING
| Ethernet | 1 x 10/100 Mbit/s Network (RayNet) | ||
| NMEA0183 | No | ||
| NMEA2000 | NMEA2000 via DeviceNet port. SeaTalkng compatible using an optional adapter | ||
| SeaTalkNG | Requires DeviceNet Female (F) adaptor cable (A06079 120mm adaptor included in box) | ||
| USB | 1 x USB microAB | ||
| Wi-Fi | WiFi – 802.11 a/b/g/n | ||
| BlueTooth | Bluetooth v4.0 | ||
NAVIGATION
| Cartography | Lighthouse Charts, Navionics, and C-MAP compatible | ||
| Waypoint/Routes/Tracks (Wpts/Rts/Trk) | 10,000 wpts / 200 wpt groups / 150 rts – 250 wpt max / 16 tracks – 10,000 max trk pts | ||
MEMORY
| Internal Memory | 16 GB Solid State | ||
| External Memory | 1x MicroSD Card Slot | ||
| Languages | 24 | ||
| Conformances | NMEA 2000 certification | Europe: 1999/5/EC | Australia and New Zealand: C-Tick, Compliance Level 2 | FCC 47CFR part 15 | Industry Canada RSS210 | ||
OTHER
| Languages | 24 | ||
| Conformances | NMEA 2000 certification | Europe: 1999/5/EC | Australia and New Zealand: C-Tick, Compliance Level 2 | FCC 47CFR part 15 | Industry Canada RSS210 | ||
