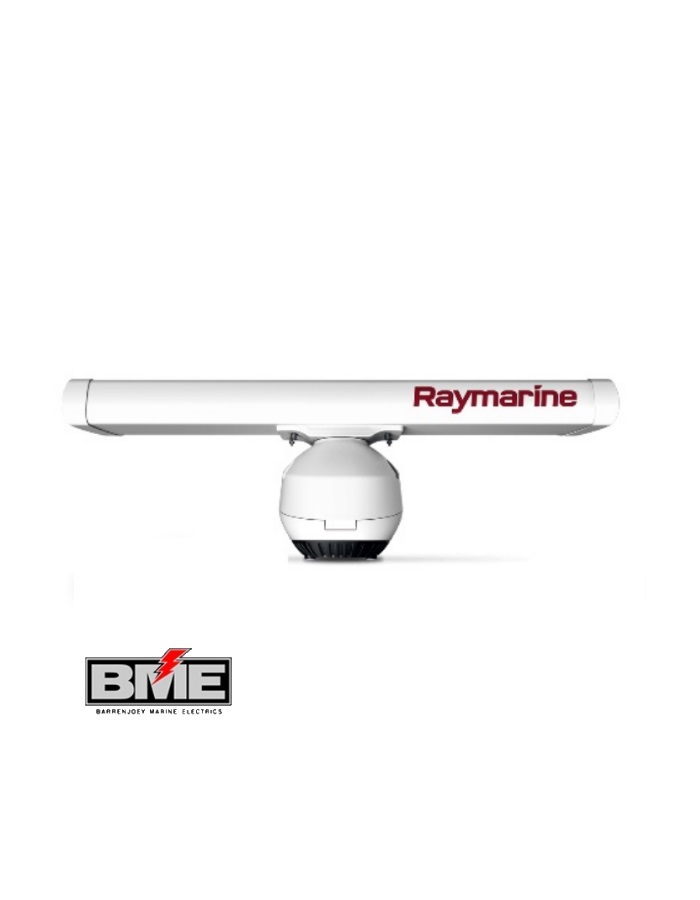

Raymarine Magnum Open Array Radar Magnum high performance open array radars bring long range performance and unmatched small target radar imaging to Raymarine multifunction navigation displays.
Employing many of the same radar technologies trusted by the United States Coast Guard, Magnum offers enhanced target tracking and reliable performance, all packaged in a sleek open-array pedestal built to withstand the elements.
Magnum is available in 4kW or 12kW power output options, and with either a four-foot or six-foot antenna array option. It offers a maximum range up to 96nm for 12kW models – ideal for blue water vessels – and up to 72nm for 4kW models.
Features
- LightHouse 2-based a, c, e, eS and gS-Series MFDs
- C-Series Widescreen and E-Series Widescreen MFDs
- E-Series Classic, G-Series Multifunction Displays
- Superior Bird Mode
- Enhanced Radar Imaging
- Best in Class Target Tracking
- Real Time Heading Updates
Raymarine Magnum Open Array Radar Specifications
- Model: 4kW – 4ft*; 4kW – 6ft; 12kW – 4ft; 12kW – 6ft *Base Product
- Antenna Size: ~1.31m; ~1.92m; ~1.31m; ~1.92m
- Max Range Scale: 72 nautical miles; 96 nautical miles
- Scanner Weight: (Pedestal + Antenna): 26kg; 29kg; 26kg; 29kg
- Antenna Beam Width Horizontal (Nominal): 1.85°; 1.15°; 1.85°; 1.15°
- Antenna Effective Horizontal Beam Width: Less than 1°
- Antenna Beam Width Vertical -3dB: 25°
- Antenna Side Lobes (Inside 10°): < -21dB
- Antenna Side Lobes (Outside 10°): < -30dB
- Antenna Rotation Rate: 24 rpm / 48 rpm
- Receiver Bandwidth: Matched digital filter for each pulse length
- Pulse Length/PRF Settings: 8
- Number of Displayed Video Levels: 256 (8-bit)
