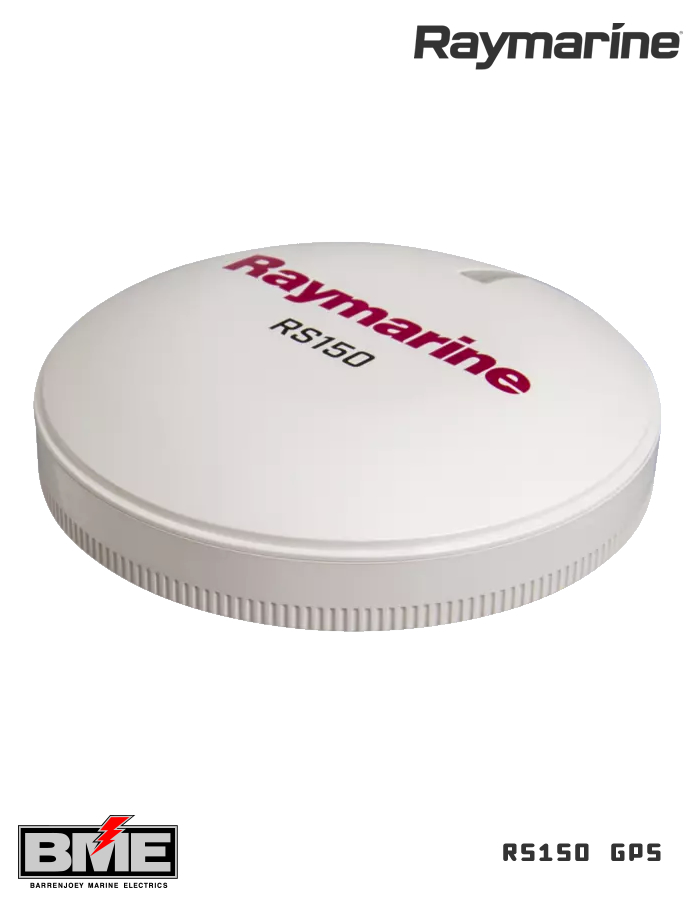

Raymarine RS150 Key Features
- 72-channel GPS receiver
- Fast 10Hz position updates
- Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS, EGNOS, MSAS and GAGAN support
- A GNSS receiver with GLONASS compatibility
- Low power consumption: 30mA (1 LEN)
- SeaTalkng and NMEA2000 compatible (using a device net adapter cable)
- Designed for low profile surface mounting or optional pole mounting
Raymarine RS150 Specification
| GNSS (GPS) Specifications | |
|---|---|
| Position accuracy |
Without SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the time |
| Geodetic Datum |
WGS84 |
| Satellite Differential Type (SBAS) |
WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India) |
| GNSS compatibility |
BeiDou and Galileo ready (supported by future software update) |
| Differential acquisition |
Automatic |
| Signal acquisition |
Automatic |
| Sensitivity |
-163 dBm (tracking), -147 dBm (acquisition) |
| Time to first fix from hot start |
< 8 seconds |
| Time to first fix from cold start |
< 2 minutes (< 45 seconds typical) |
| Speed accuracy (95%) |
< 0.3 knots |
| Channels |
72 |
| Environmental Specifications | |
|---|---|
| Relative humidity |
Up to 93% |
| Waterproof rating |
IPx6 |
| Storage temperature |
-25°C to +70°C (-13°F to 158°F) |
| Operating temperature |
-25°C to +55°C (-13°F to 131°F) |
| Physical Specifications | |
|---|---|
| Connections |
SeaTalkng |
| Dimensions |
Height: 26.61 mm (1.05 in) Diameter: 108.48 mm (4.27 in) |
| Power Specifications | |
|---|---|
| Operating voltage range |
9 V dc to 16 V dc (protected up to 32 V dc) |
| Power consumption |
30 mA |
| Nominal supply voltage |
12 V dc (Supplied by SeaTalkng network) |
| LEN (NMEA 2000 Load Equivalency Number) |
1 |
