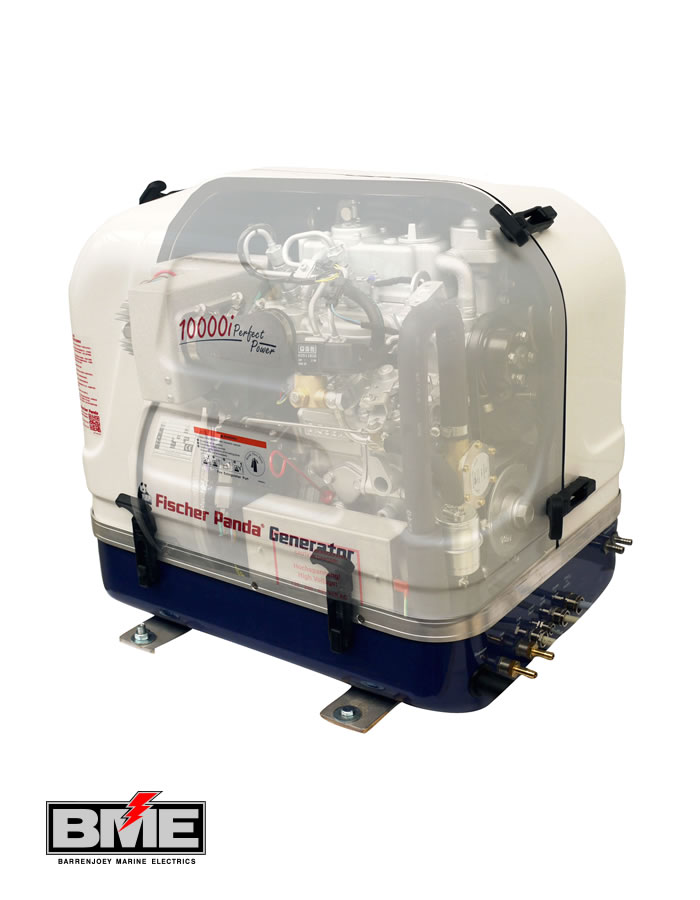

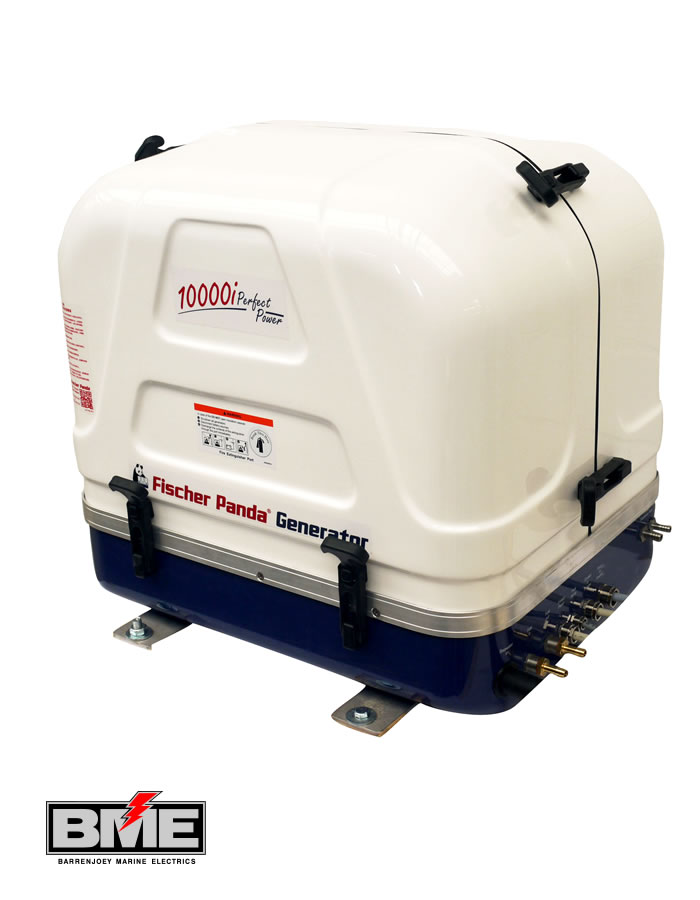

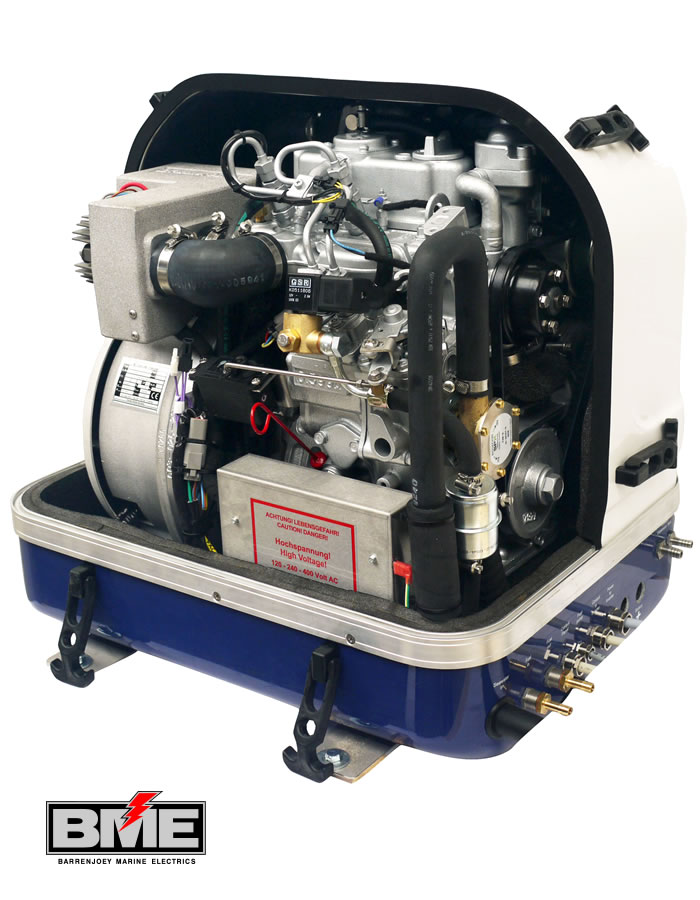

Fischer Panda 10000i PMS Marine Generator

Fischer Panda 10000i PMS Marine Generator

Name: Fischer Panda 10000i PMS Marine Generator - BME - Barrenjoey Marine Electrics
Brand: Fischer Panda

The new Fischer Panda iSeries Generators take full advantage of modern diesel engines designed to run at lower speeds and meet current emission standards. With new iControl2 digital panel featuring autostart and data-logging. The New Fischer Panda 10000i PMS is Highly efficient – Small Size and Low Weight – Maximum Energy – Water Cooled Marine Generator.

Enquire about this product

Description
Reviews 0

Fischer Panda 10000i PMS Marine Generator

Engin Data

Engine Manufacturer: Kubota (KU)
Engine Type: Z602
No. Cylinders: 2
Displacement [cm3]: 599
Starter System: 12V (24V Optional) Fischer Panda i-Series (50 Hz) Features

Digital display
Environmentally friendly – low fuel consumption
Variable speed – load-dependent
Easy to install – reduces costs
Small size and low weight – compact installation
High starting capacity for air conditioners / diving compressors
Highly efficient – maximum energy
Pure sinus wave is ideal for sensitive electronics
External 12V fuel pump

Electrical Data

Isolation class of windings: H
Nominal Speed [rpm]: 2200-2800 rpm
Voltage Regulation: iControl
Voltage Tolerance: ±3%
Power rating factor Cos Pi: 0.80
Frequency [Hz]: 50
Nominal Voltage in Volt: 230
Nominal Performance in kW)1): 0-8.00
Nominal Performance in kVA1): 0-10.0
Continuous Performance in kW1): 0-7.2
Continuous Performance in kVA1): 0-9.0
Number of Phases: 1
