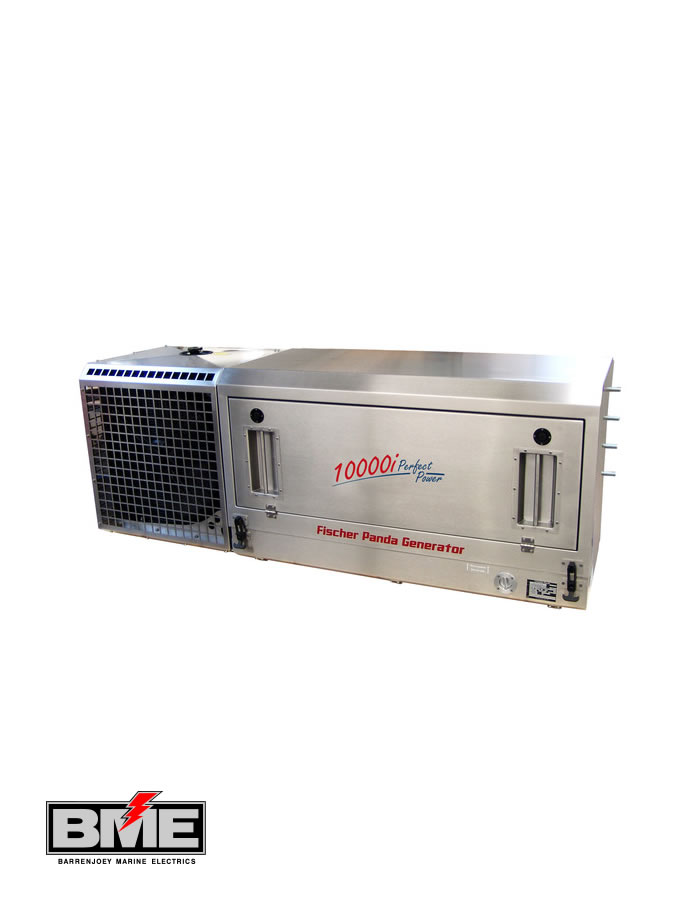

Fischer Panda 10000i PVK-UK Generator

“””Fischer Panda 10000i PVK-UK Marine Generator As with all Fischer Panda Generators, the Panda 5000 comes standard with 100% Water-cooled, cooling for both the engine and the Due to the unique design of the asynchronous rotor that has no windings, brushes or diodes, the Fischer Panda generator can cool the stator winding with nearly 100% 25 efficiency. A conventional synchronous generator can never achieve this level of efficiency because the rotor windings are cooled with air. That same air is very hot and transfers considerable noise. This air will also bring humidity and dirt into the windings, which will increase the resistance and thereby reduce the electrical output. The Fischer Panda generator offers all of the classic advantages of asynchronous generator’s such as a high level of overload protection, operational safety, short-circuit protection, fewer moving parts, perfect motor balance, nearly perfect sine wave and a sealed long life stator. In addition, the Fischer Panda offers the atented VCS technology and integrated start booster with voltage precision and consistency. Fischer Panda is the only company to build generators with a 100% 25 fresh water-cooled asynchronous electric plant. This feat of engineering provides distinct advantages over air-cooled generators in size, weight, noise, fuel efficiency and performance. This robust Fischer Panda 5000 is driven by the reliable Kubota twin-cylinder diesel engine and produces a powerful 40 amps (maximum load). Operating at a noise level below 54 dBa @ 7 meters, this fierce competitor is no loud mouth. It is powerful enough to simultaneously start and run a 16,000 and 12,000 BTU air conditioner. Weighing in at a mere 268 lbs, the Panda 5000 is ideal for compact installations on sailboats or smaller gas or diesel powered powerboats. Panda i-Series (50 Hz) Features

• Digital display
• Environmentally friendly – low fuel consumption
• Variable speed – load-dependent
• Easy to install – reduces costs
• Small size and low weight – compact installation
• High starting capacity for air conditioners / diving compressors
• Highly efficient – maximum energy
• Pure sinus wave is ideal for sensitive electronics
• External 12V fuel pumpMetal capsule with a heavy duty cover
• Wide access hatch for easier access
• Sound insulation capsule
• No additional exhaust silencer required
• Integrated radiator and cooling system
• Designed for mounting externally on the vehicle chassis
• Water-cooled Engine
• 12V/10A Alternator for charging the starter battery

Fischer Panda 10000i PVK-UK Marine Generator Specifications

---

Electrical Data

Frequency [Hz]: 50 Isolation class of windings: H Nominal Speed [rpm]: 2200-2800 rpm Voltage Regulation: iControl Voltage Tolerance: ±3% Power rating factor Cos Pi: 0.80 Nominal Voltage in Volt: 230 Nominal Performance in kW)1): 0-8.00 Nominal Performance in kVA1): 0-10.0 Continuous Performance in kW1): 0-7.2 Continuous Performance in kVA1): 0-9.0 Number of Phases: 1
