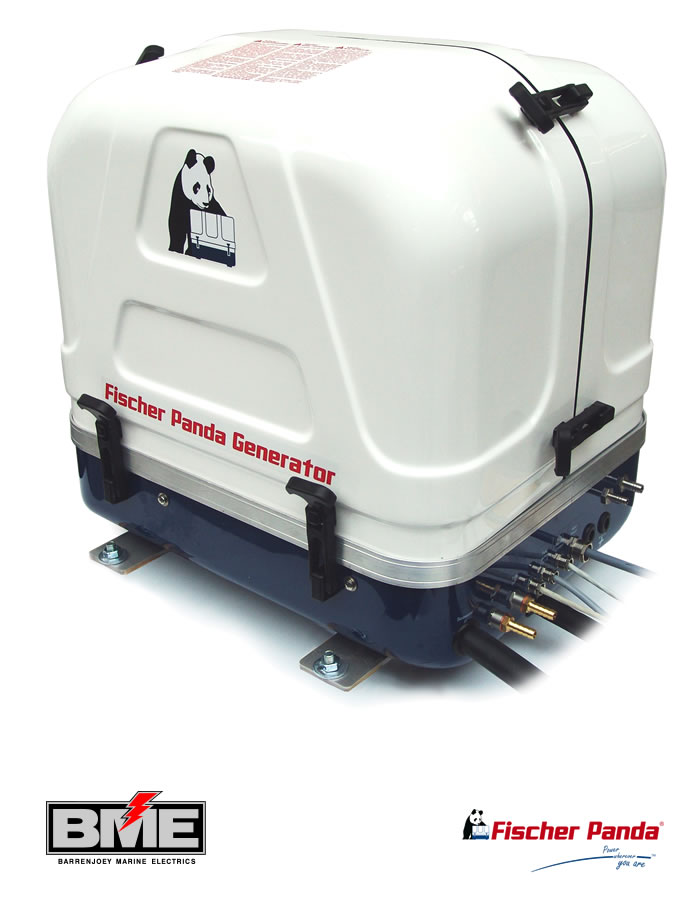

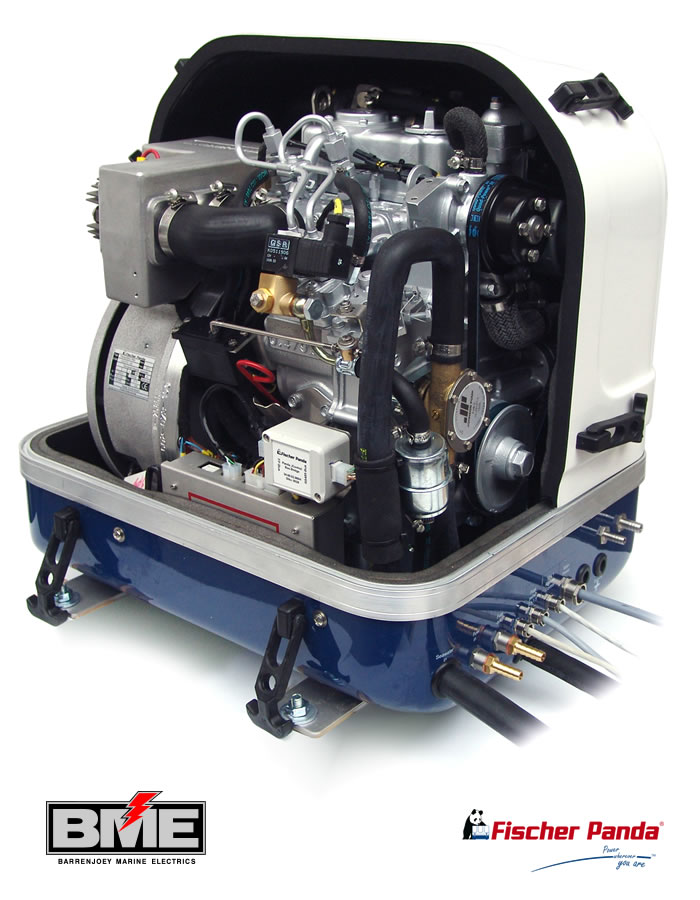

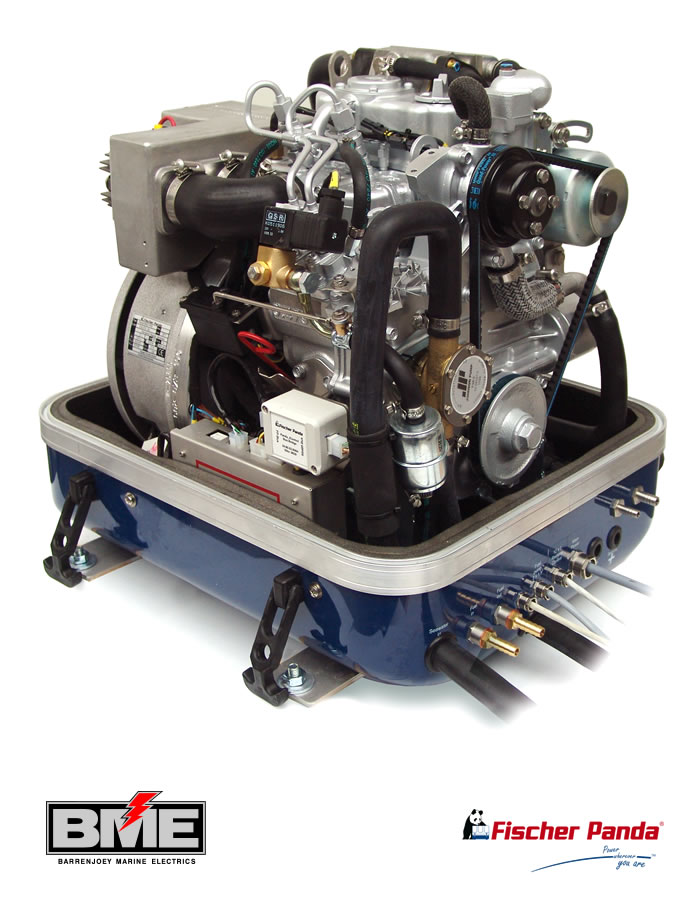

Fischer Panda 8000I PMS 60HZ Marine Generator

Fischer Panda 8000I PMS 60HZ Marine Generator

Engin Data

Engine Manufacturer: Kubota (KU) Engine Type: Z482 No. Cylinders: 2 Displacement [cm3]: 479 Starter System: 12V (24V Optional) Fischer Panda PMS Features

• Suitable for internal installation
• Low ambient temperatures
• External control panel with cable
• Dual circuit cooling
• Water-cooled Engine
• 12V/10A Alternator for charging the starter battery

Single Phase Version with Inverter Technology

Engine Speed [rpm]: 2200 – 2800 Nominal Voltage in Volt: 120 Nominal Performance in kW)1): 0-6.00 Nominal Performance in kVA1): 0-7.5 Continuous Performance in kW1): 0-5.4 Continuous Performance in kVA1): 0-6.8 Number of Phases: 1 Frequency [Hz]: 60

Fischer Panda 8000I PMS 60HZ Marine Generator Specifications

---

Technical Data

• Frequency [Hz]: 60
• Generator manufacturer: Fischer Panda GmbH
• Isolation class of windings: H
• Nominal Speed [rpm]: 2200-2800 rpm
• Voltage Regulation: iControl2
• Power rating factor Cos Pi: 0.8
