Mastervolt Alternator Alpha

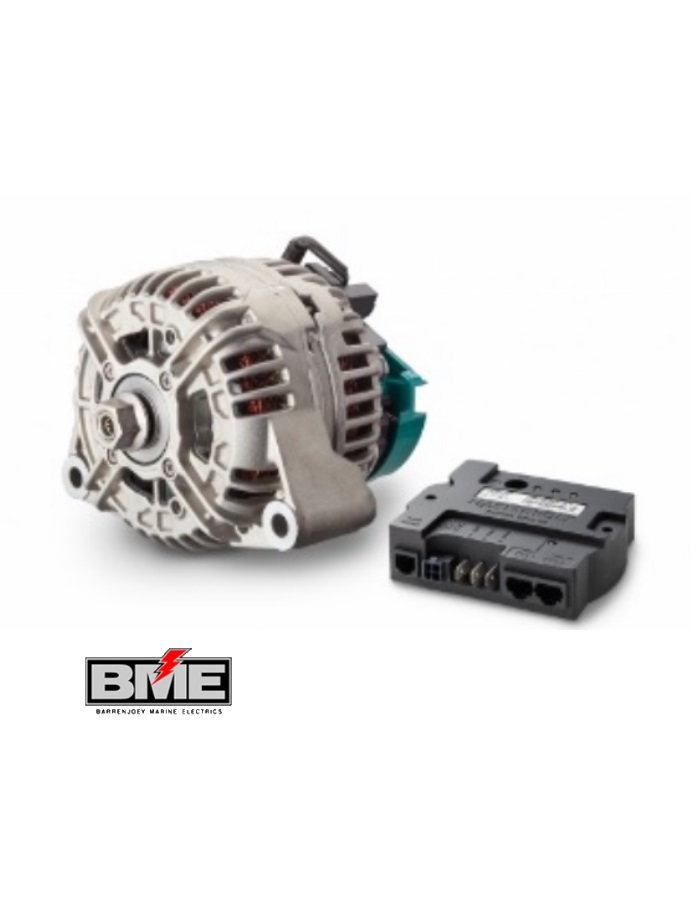

Mastervolt Alpha Alpha Compact alternators are optimized to deliver continuous high power output in energy storage applications. Combined with our Alpha Pro regulators, they create a high performance, plug-and-play charging solution. This combination is suitable for all battery types, including Lithium Ion.

Compared to conventional alternators, Alpha Compact offers lower weight, smaller dimensions and reduced fuel consumption. This is made possible by its open construction with double internal fans. An integrated temperature sensor controls the operating temperature. Features

• Plug and play solution, with Alpha Pro III regulator included.
• Up to 40 % lighter and 25 % more compact than conventional alternators.
• Up to 40 % lower fuel consumption.
• OEM quality with optimized material composition.
• Suitable for use in high temperature areas.
• Cable and electronic parts protected against oil, moisture and dust.

Mastervolt Alternator Alpha Specifications

Mastervolt Alpha Compact 14/120 Specifications

• System voltage: 12 V
• Nominal current (at 6000 rpm, 25 °C): 120 A
• Charge current (at 1800 rpm, 25 °C): 70 A
• Cut-in speed: 1300 rpm
• Max. rotational speed: 20.000 rpm
• Power Take Off (kW / hp): 3,4 / 4,5
• Max. operating temperature: 110 °C
• Connections: positive output stud = 2x M8; W (rpm) signal connection = isolated fast-on; field current connection = Mastervolt plug
• Temperature sensor: integrated, RJ12 connection

Mastervolt Alpha Compact 14/200 Specifications

• System voltage: 12 V
• Nominal current (at 6000 rpm, 25 °C): 200 A
• Charge current (at 1800 rpm, 25 °C): 106 A
• Cut-in speed: 1350 rpm
• Max. rotational speed: 20.000 rpm
• Power Take Off (kW / hp): 5.6 / 7.6
• Max. operating temperature: 110 °C
• Connections: positive output stud = 2x M8; W (rpm) signal connection = isolated fast-on; field current connection = Mastervolt plug
• Temperature sensor: integrated, RJ12 connection

Mastervolt Alpha Compact 28/110 Specifications

• System voltage: 24 V
• Nominal current (at 6000 rpm, 25 °C): 110 A
• Charge current (at 1800 rpm, 25 °C): 41 A
• Cut-in speed: 1400 rpm
• Max. rotational speed: 15.000 rpm
• Power Take Off (kW / hp): 6.2 / 8.3
• Max. operating temperature: 110 °C
• Connections: positive output stud = 2x M8; W (rpm) signal connection = isolated fast-on; field current connection = Mastervolt plug
• Temperature sensor: integrated, RJ12 connection

Mastervolt Alpha Compact 28/150 Specifications

• System voltage: 24 V
• Nominal current (at 6000 rpm, 25 °C): 150 A
• Charge current (at 1800 rpm, 25 °C): 28 A
• Cut-in speed: 1700 rpm
• Max. rotational speed: 16.000 rpm
• Power Take Off (kW / hp): 8,4 / 11,4
• Max. operating temperature: 110 °C
• Connections: positive output stud = 2x M8; W (rpm) signal connection = isolated fast-on; field current connection = Mastervolt plug
• Temperature sensor: integrated, RJ12 connection
