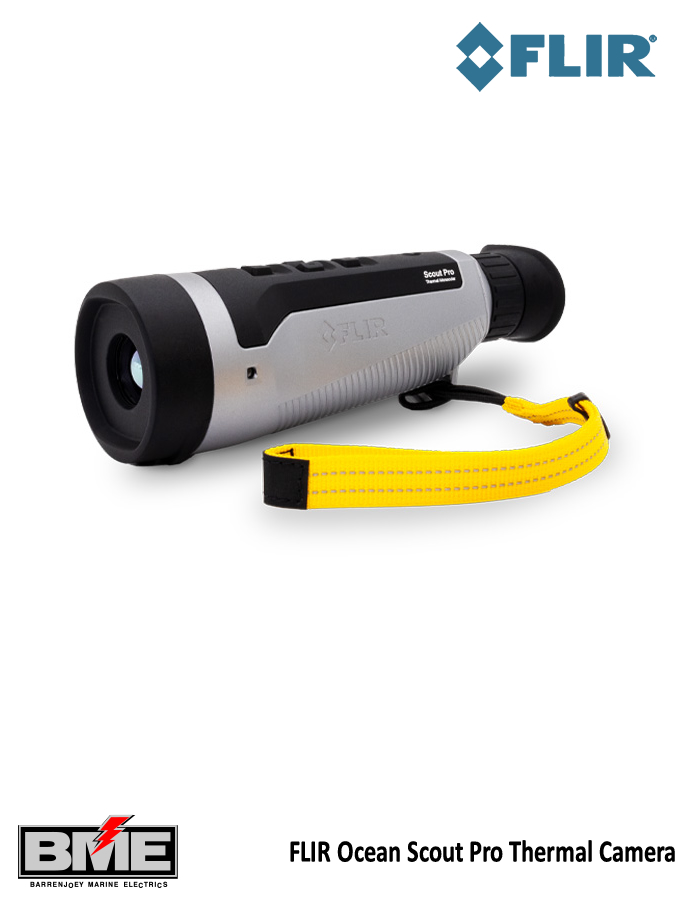

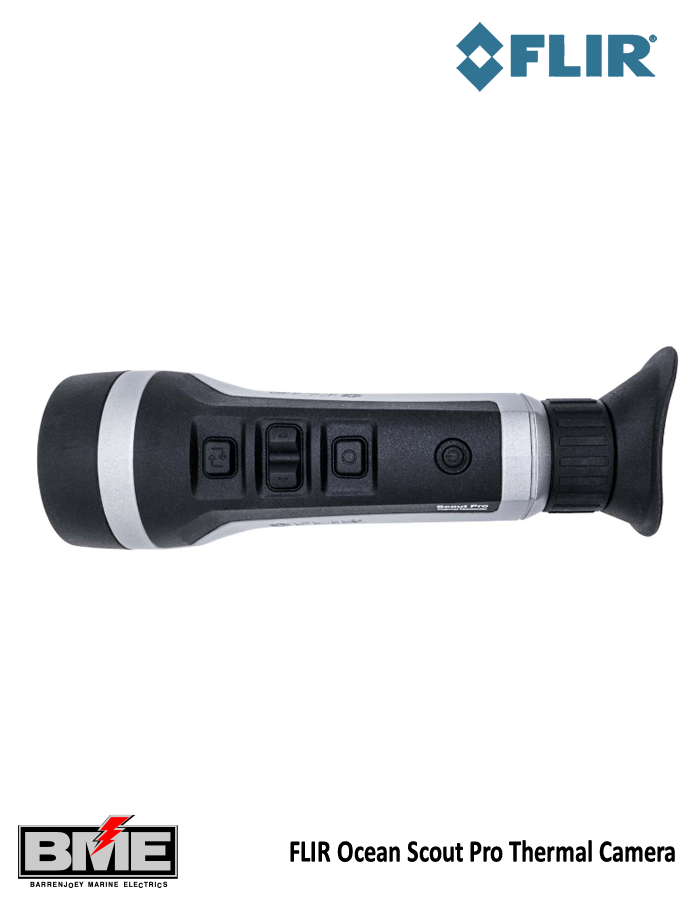

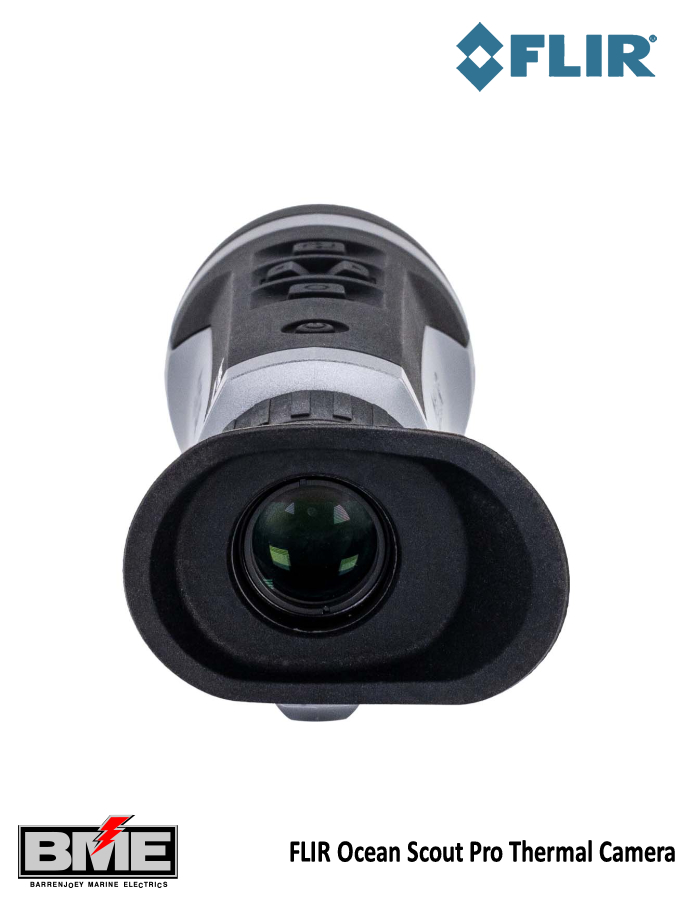

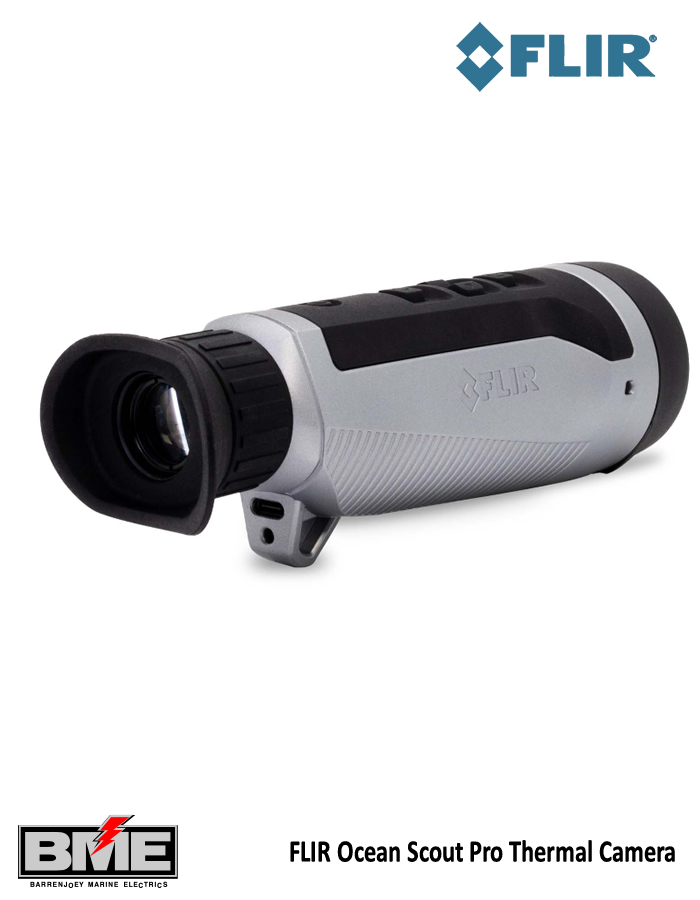

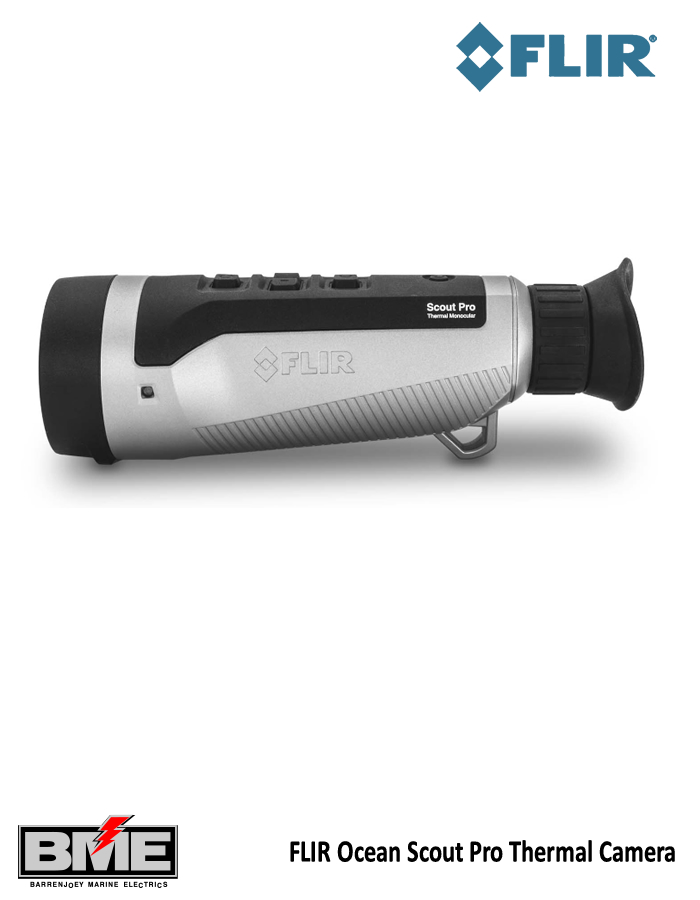

FLIR Ocean Scout Pro

FLIR Ocean Scout Pro Thermal Camera Specifications

Color Palettes: White Hot, Black Hot, Sepia, Heat
Detector Frame Rate: 30 Hz
Display Frame Rate: 60 Hz
E-Zoom – Thermal: 2x, 4x, 6x, 8x
Focus: Fixed focus
Image Processing: FLIR Digital Detail Enhancement™
Minimum Focus Distance: 4 m (13 ft)
Pixel Pitch: 17µm
Spectral Range: 7.5 µm – 13.5 μm
Thermal Detector Type: 640 × 480, vox microbolometer
Thermal Field of View: 32°
Thermal Focal Length: 19 mm
Thermal Sensitivity: <38 mK @ 30°C (86°F)

System Specifications

Battery Charging: 2 h at 80%
Battery life: Up to 6 hours
Battery type: Internal Li-Ion cell
Bluetooth: BLE
Disable Radio and Wi-Fi: Physical On/Off switch
Display resolution: XGA 1024 × 768
Image Storage Mode: IR
IR File Formats Standard: JPEG
Media Gallery: Scout Pro App (iOS only)
Non-radiometric IR video recording: MPEG4 AVC (ITU-T H.264)
Package Includes: Handheld thermal camera, USB-C cable, 1 × standard eyecup, 1 × asymmetrical eyecup, pouch
Storage Capacity: 16 GB
Storage Media: Embedded flash
USB Streaming: UVC (YUV422 no overlay)
Video Recording: Yes
Video Streaming: Yes
Warranty: 2 years + an additional 3 years after registration
WiFi: Yes

Environmental

Drop Rating (Drop Test Rating): 2 m (6 ft 7 in)
Operating Temperature Range: -15°C to 45°C (5°F to 113°F)
Water Ingress: IP67

Physical

Color (housing): Silver
Size: (L x W x H) 19.2 cm × 6.4 cm × 6.4 cm (7.5 in × 2.5 in × 2.5 in)
Tripod Mounting: UNC ¼”–20
Weight [battery included]: 498 g (1 lb 2 oz)
