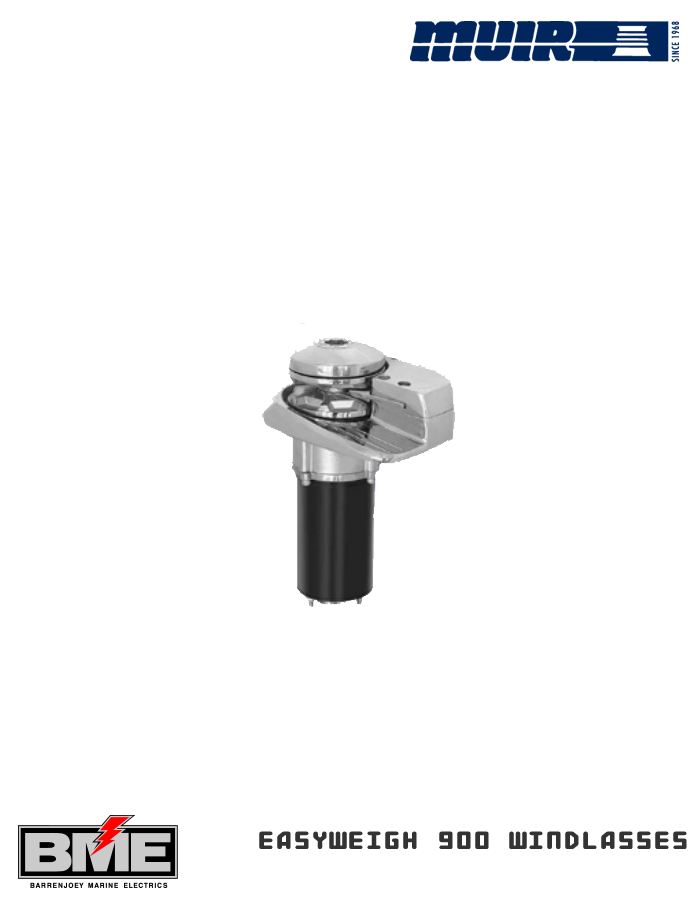

Muir Easyweigh Horizontal 900W Windlasses
Features
- Compact anchoring system to suit boats from 6m to 11m
- 316 Stainless Steel components
- Includes reversing solenoid, 100 amp circuit breaker and Helm Station up/down rocker switch
- Installation instructions included with full electrical wiring diagram and backed by Muir’s 3 year limited warranty
- Simple installation
- Deck mounting studs & fasteners

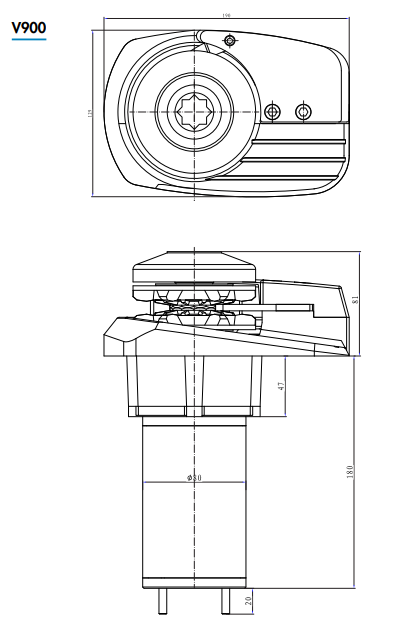

| Model | V900W | H900W |
|---|---|---|
| Vessel Length | 6-11M (20-37ft) | 6-11M (20-37ft) |
| Power Supply (DC) | 12V | 12V |
| Motor (Watts) | 900 | 900 |
| Max Load | 220kg (485lb) | 350kg (772lb) |
| Work Load | 80kg (176lb) | 180kg (396lb) |
| Amps Work Load | 80 | 100 |
| Max Line Speed | 23m/min (75lb/min) | 23m/min (75lb/min) |
| Chain Size | 6mm (1/4″), 8mm (5/16″) | 6mm (1/4″), 8mm (5/16″) |
| Rope Size | 12mm (1/2″) | 12mm (1/2″), 14mm (9/16″) |
| Net Weight | 9kg (20lb) | 13kg (28lb) |
