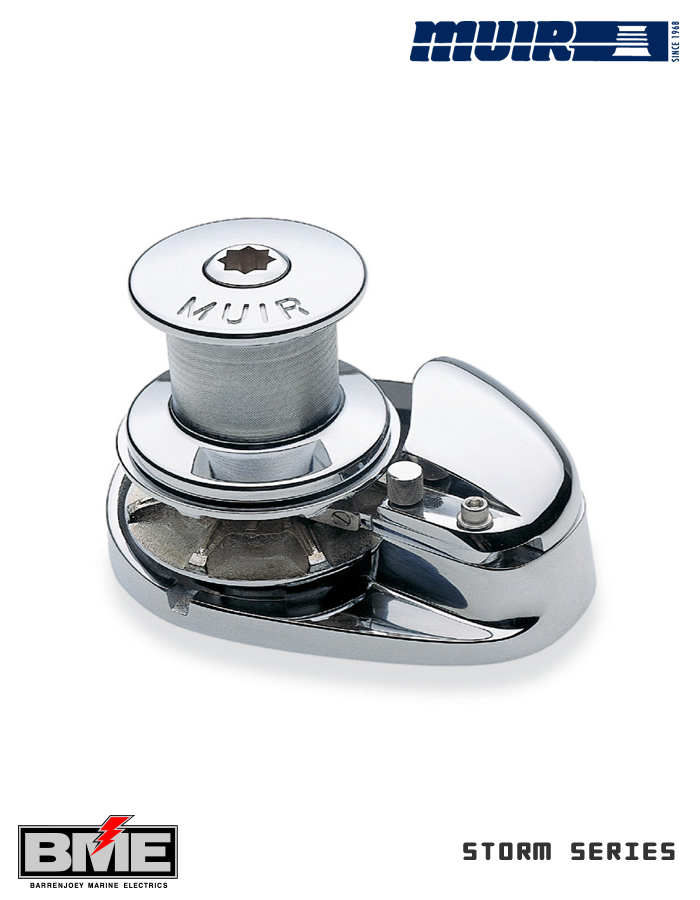

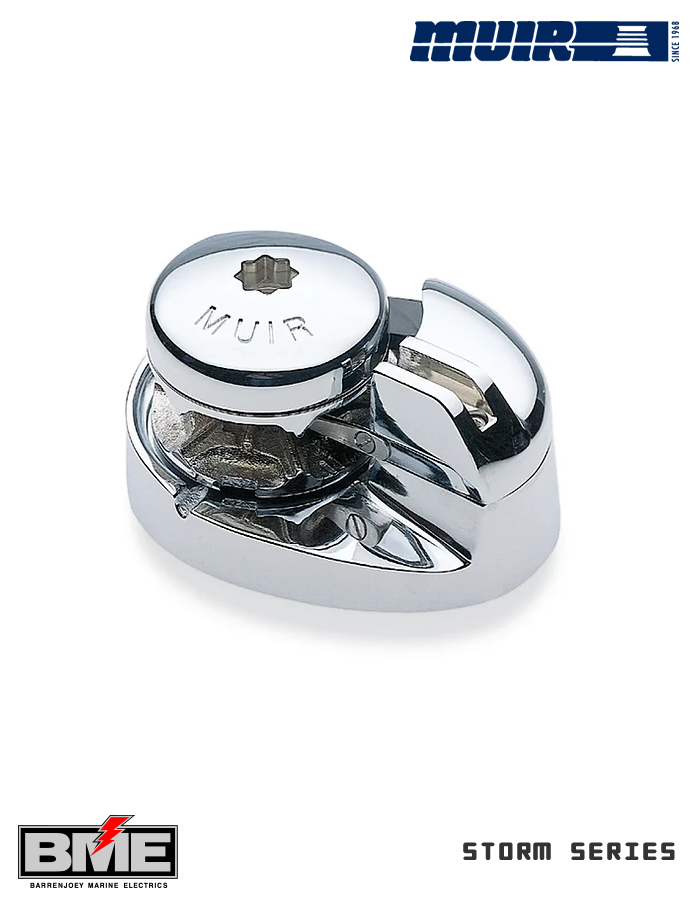

The award winning Muir Storm VR/VRC1250 1000W Rope Chain Anchor Winch with luxury stainless steel finish revolutionises rope chain windlass technology are the preferred choice for high performance and smooth operation.
The Muir Storm VR/VRC1250 1000W Rope Chain Anchor Winch of vertical windlasses provides the strength of conventional vertical windlasses but with advanced and innovative concepts.
Muir Storm VR/VRC1250 1000W Rope Chain Anchor Winch provide the highest level of security and safety.
Options
- Extra deck clearance kit for decks up to 150mm/6”
- Full range of accessories including chain, rope,
chain stoppers, snubber kits and devil claws - Electrical operating options and accessories
- Auto anchor – chain counter
| Vessel Length | 10-13m (32-42ft) |
|---|---|
| Power Supply (DC) | 12/24V |
| Motor (Watts) | 1000 |
| Hydraulic Pressure | 8MPa (1160PSI) |
| Hydraulic Flow | 15L/min (4gal/min) |
| Max Load | 500kg (1100lb) |
| Work Load | 167kg (367lb) |
| Amps Work Load | 125/60 |
| Max Line Speed | 15m/min (48ft/min) |
| Chain Size | 10mm (3/8″), 6mm (1/4″), 8mm (5/16″) |
| Rope Size | 12mm (1/2″), 14mm (9/16″), 16mm (5/8″) |
| Net Weight | DC VR 20kg (44lb), DC VRC 22kg (48lb), HYD VR 15.5kg (34lb), HYD VRC 17kg (38lb) |
| Manual Operation | MOS (std on most gypsy sizes) |
Muir Storm VR/VRC1250 1000W Rope Chain Anchor Winch
Features
- Polished stainless steel components
- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor
- Superior, heavy-duty Italian drive train
- Rope Chain Management System (RCMS) fitted
- Integrated quick release with chain pipe cover
- Quick fit adaptor for easy install
- Self-lubricating bush
- Capstan models feature a knurled grip
- Independent gypsy and capstan operation
Standard package contains
- Circuit breaker & mounting panel
- Deck switch
- Deck mounting studs & fasteners
- Clutch release handle
- Installation/Operation booklet
- Manual Operation System (MOS)
Technical Specifications Download
Download the PDF Technical Specification Document for the Vertical Windlass Muir Storm VR / VRC 1250
