The award winning Muir Storm VR/VRC2500 1200W Rope Chain Anchor Winch with luxury stainless steel finish revolutionises rope chain windlass technology are the preferred choice for high performance and smooth operation.
The Muir Storm VR/VRC2500 1200W Rope Chain Anchor Winch of vertical windlasses provides the strength of conventional vertical windlasses but with advanced and innovative concepts.
Muir Storm VR/VRC2500 1200W Rope Chain Anchor Winch provide the highest level of security and safety.
Options
- Extra deck clearance kit for any deck thickness
- Round base VR/VRC model (chain only)
- Mirror image models available
- Manual Override System (MORS)
- Traditional polished bronze finish
- Full range of accessories including chain, rope,
chain stoppers, snubber kits & devil claws - AC & hydraulic power options available
- Auto anchor – chain counter.
| Vessel Length | 14-20m (45-65ft) |
|---|---|
| Power Supply (DC) | 12/24V, AC Electric available |
| Motor (Watts) | 1200 |
| Hydraulic Pressure | 10MPa (1450PSI) |
| Hydraulic Flow | 20L/min (5.5gal/min) |
| Max Load | 1136kg (624lb) |
| Work Load | 379kg (833lb) |
| Amps Work Load | 150/70 |
| Max Line Speed | 13.5m/min (44ft/min) |
| Chain Size | 10mm (3/8″), 13 mm (1/2”) (chain only), 8mm (5/16″) |
| Rope Size | 14mm (9/16″), 16mm (5/8″) |
| Net Weight | DC VR 40kg (88lb), DC VRC 44kg (96lb), HYD VR 38kg (84lb), HYD VRC 42kg (92lb) |
| Manual Operation | MORS (opt) |

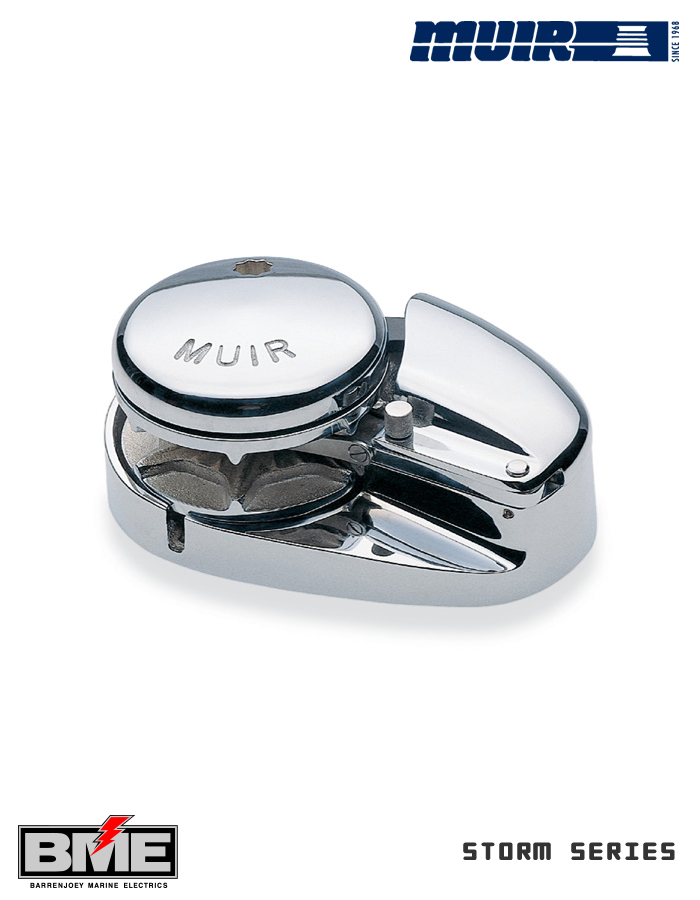

Muir Storm VR/VRC2500 1200W Rope Chain Anchor Winch
Features
- Polished stainless steel components
- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor
- Superior, heavy-duty Italian drive train
- Rope Chain Management System (RCMS) fitted
- Integrated quick release with chain pipe cover
- Self-lubricating bush

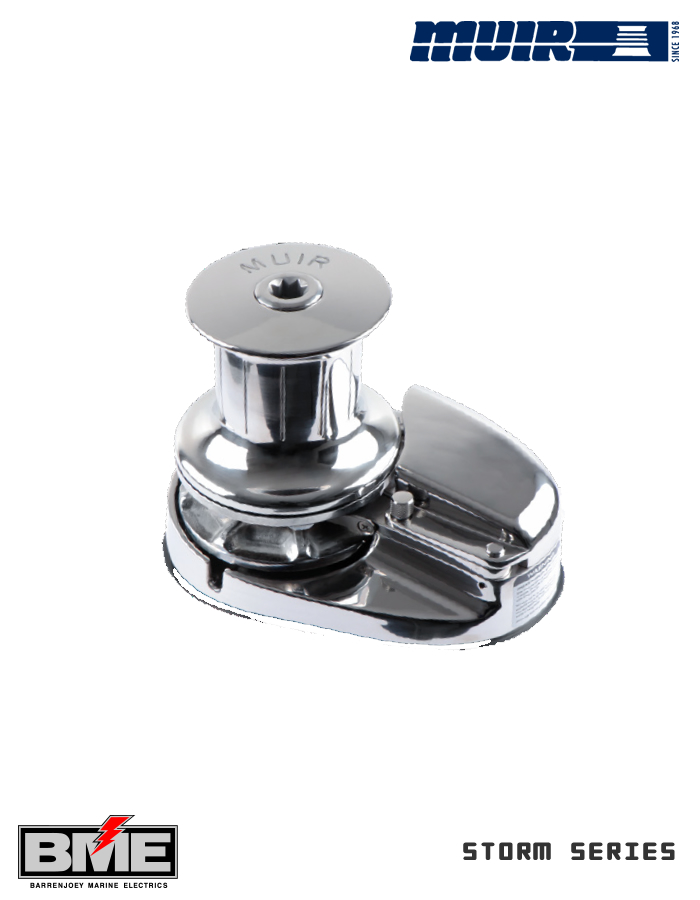

- Capstan model features a fluted grip
- Independent gypsy and capstan operation
Standard package contains
- Circuit breaker & mounting panel
- Deck switch
- Deck mounting studs & fasteners
- Clutch release handle
- Installation/Operation booklet
Technical Specifications Download
Download the PDF Technical Specification Document for the Vertical Windlass Muir Storm VR / VRC 2500
