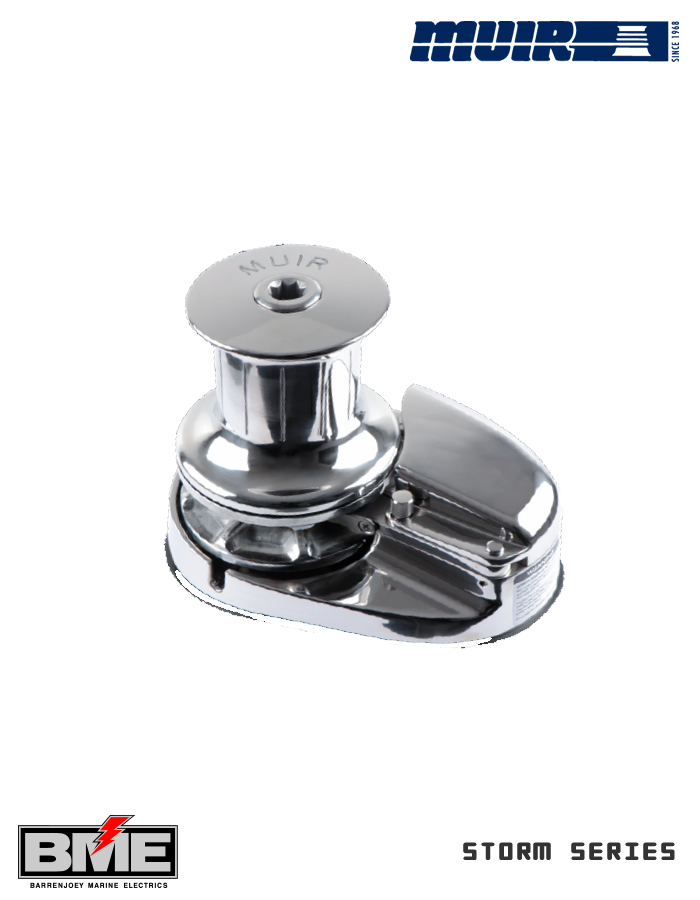

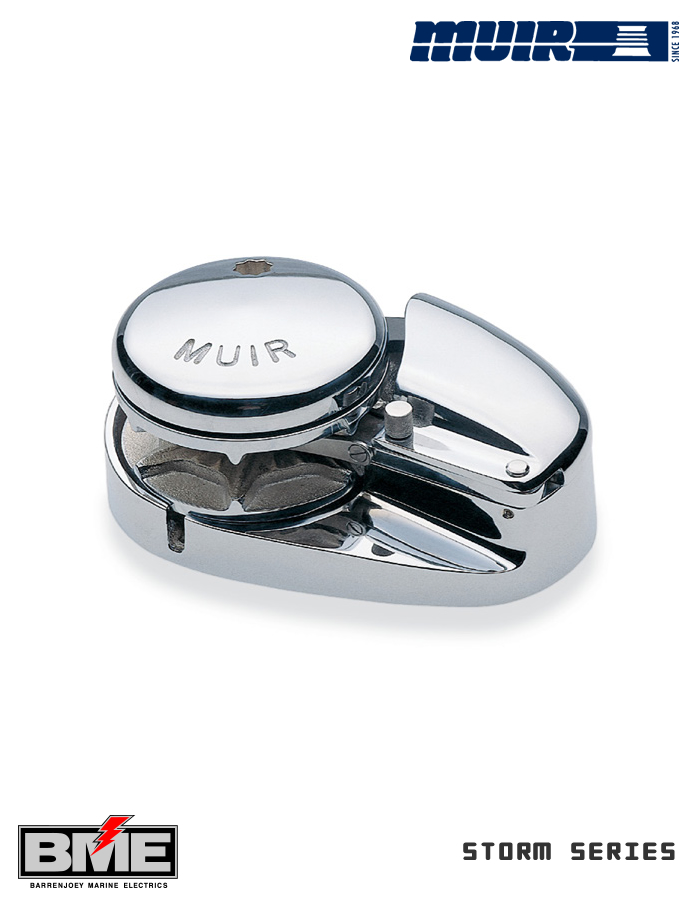

The award winning Muir Storm VR/VRC3500 1500W Rope Chain Anchor Winch with luxury stainless steel finish revolutionises rope chain windlass technology are the preferred choice for high performance and smooth operation.
The Muir Storm VR/VRC3500 1500W Rope Chain Anchor Winch of vertical windlasses provides the strength of conventional vertical windlasses but with advanced and innovative concepts.
Muir Storm VR/VRC3500 1500W Rope Chain Anchor Winchprovide the highest level of security and safety.
Muir Storm VR/VRC3500 1500W Rope Chain Anchor Winch
Options
- Extra deck clearance kit for any deck thickness
- Round base VR/VRC model (chain only)
- Mirror image models available
- Manual Override System (MORS)
- Traditional polished bronze finish
- Full range of accessories including chain, rope,
chain stoppers, snubber kits & devil claws - AC & hydraulic power options available
- Auto anchor – chain counter.
| Model | VR/VRC3500 |
|---|---|
| Vessel Length | 15-24m (48-77ft) |
| Power Supply (DC) | 12/24V |
| Motor (Watts) | 1500 |
| Hydraulic Pressure | 10MPa (1450PSI) |
| Hydraulic Flow | 28L/min (7.5gal/min) |
| Max Load | 1590kg (3500ft) |
| Work Load | 530kg (1167lb) |
| Amps Work Load | 185/90 |
| Max Line Speed | 13.5m/min (44ft/min) |
| Chain Size | 10mm (3/8″), 13mm (1/2″), 8mm (5/16″) |
| Rope Size | 14mm (9/16″), 16mm (5/8″) |
| Net Weight | DC VR 42kg (92lb) VRC 46kg (101lb), HYD VE 38kg (84lb) VRC 42kg (92lb) |
| Manual Operation | MORS (opt) |
Muir Storm VR/VRC3500 1500W Rope Chain Anchor Winch
Features
- Polished stainless steel components
- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor
- Superior, heavy-duty Italian drive train
- Rope Chain Management System (RCMS) fitted
- Integrated quick release with chain pipe cover
- Self-lubricating bush
- Capstan model features a fluted grip
- Independent gypsy and capstan operation
Muir Storm VR/VRC3500 1500W Rope Chain Anchor Winch
Standard package contains
- Circuit breaker & mounting panel
- Deck switch
- Deck mounting studs & fasteners
- Clutch release handle
- Installation/Operation booklet
Technical Specifications Download
Download the PDF Technical Specification Document for the Vertical Windlass Muir Storm VR / VRC 3500
