The award winning Muir Storm VR/C850 12V/24V 600W Anchor Winch with luxury stainless steel finish revolutionises rope chain windlass technology are the preferred choice for high performance and smooth operation.
The Muir Storm VR/C850 12V/24V 600W Anchor Winch of vertical windlasses provides the strength of conventional vertical windlasses but with advanced and innovative concepts.
Muir Storm VR/C850 12V/24V 600W Anchor Winch provide the highest level of security and safety.

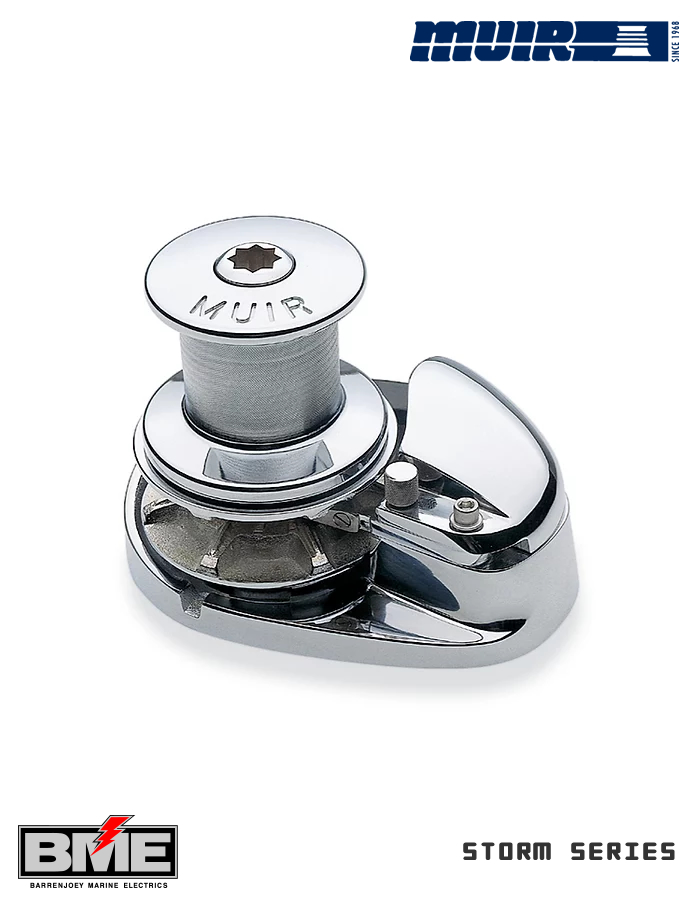

Muir Storm VR/C850 12V/24V 600W Anchor Winch
Options
- Extra deck clearance kit for up to 150mm/6” deck thickness
- Full range of accessories including chain and rope available
- Electrical operating options & accessories
Auto anchor – chain counter
| Vessel Length | 8-11m / 26-36ft |
|---|---|
| Power Supply (DC) | 12/24V |
| Motor (Watts) | 600 |
| Max Load | 386kg (850lb) |
| Work Load | 129kg (283lb) |
| Amps Work Load | 75/40 |
| Max Line Speed | 24m/minute (77ft/minute) |
| Chain Size | 6mm (1/4″), 8mm (5/16″) |
| Rope / Chain Size | 10mm (3/8″) |
| Rope Size | 12mm (1/2″), 14mm (9/16″), 16mm (5/8″) |
| Net Weight | DC/HYD VR 15kg (33lb), DC/HYD VRC 16.5kg (37lb) |
| Manual Operation | MOS (std on most gypsy sizes) |
Muir Storm VR/C850 12V/24V 600W Anchor Winch
Features
- Polished stainless steel components
- High tensile stainless steel shaft
- Heavy duty, marine grade, dual-direction motor
- Superior, heavy-duty Italian drive train
- Rope Chain Management System (RCMS) fitted
- Integrated quick release with chain pipe cover
- Quick fit adaptor for easy install
- Self-lubricating bush
- Capstan models feature a knurled grip
- Independent gypsy and capstan operation
Options
- Extra deck clearance kit for decks up to 150mm/6”
- Full range of accessories including chain, rope,
chain stoppers, snubber kits and devil claws - Electrical operating options and accessories
- Auto anchor – chain counter
Standard package
- Circuit breaker & mounting panel
- Deck switch
- Deck mounting studs & fasteners
- Clutch release handle
- Installation/Operation booklet
- Manual Operation System (MOS)
Technical Specifications Download

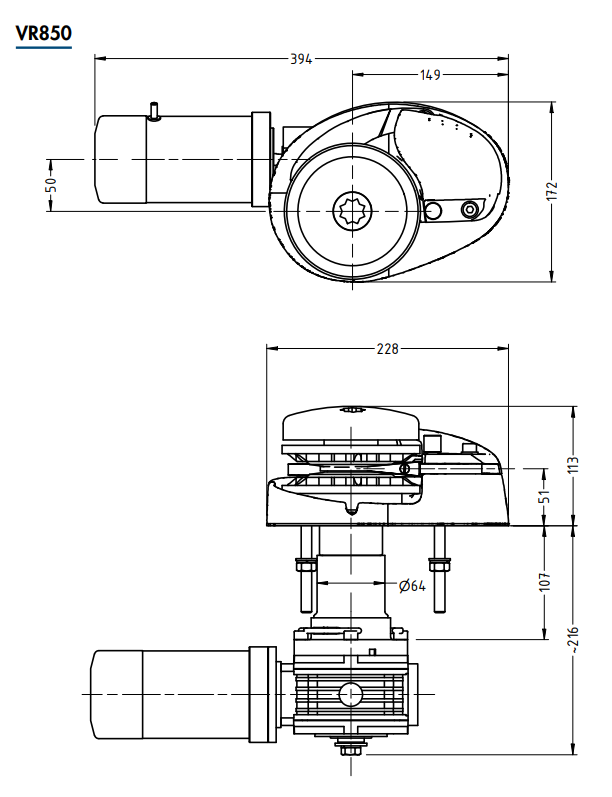

Download the PDF Technical Specification Document for the Vertical Windlass Muir Storm VR / VRC 850
